MCR1101-50-3 - ACEINNA

Description: Board Mount Current Sensors High Accuracy +/-50A Current Sensor, 3.3V, Ratiometric, 1.5MHz 3dB BW, OCD, Galvanic Isolation. UL/IEC/EN60950-1 and UL1577 certified. SOIC-16

Download MCR1101-50-3 Model

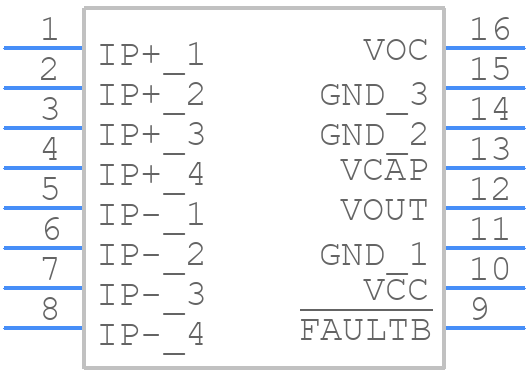

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MCR1101-50-3 - ACEINNA PCB footprint - Small Outline Packages - Small Outline Packages - 16-pin SOIC
click to zoom
3D Models
MCR1101-50-3 - ACEINNA  - 3D model - Small Outline Packages - 16-pin SOIC
click to zoom

MCR1101-50-3 Details

  • Manufacturer Part Number:

    MCR1101-50-3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    SOIC-16

  • Factory Lead Time:

    36 Weeks

  • Manufacturer:

    Aceinna

  • Body Breadth:

    7.5 mm

  • Body Height:

    2.34 mm

  • Body Length or Diameter:

    10.21 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    3.45 V

  • Supply Voltage-Min:

    3.15 V

  • Surface Mount:

    YES

MCR1101-50-3 Frequently Asked Questions (FAQs)

  • Aceinna provides a recommended PCB layout and design guide on their website, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The MCR1101-50-3 has built-in temperature compensation, and the temperature coefficients for the various parameters are provided in the datasheet. However, for more detailed information, engineers can contact Aceinna's technical support team for application-specific guidance.
  • Aceinna provides a calibration procedure in the datasheet, which involves applying a known magnetic field and adjusting the device's output to match the expected value. The frequency of recalibration depends on the application and environmental conditions, but as a general rule, it's recommended to recalibrate every 6-12 months or when the device is exposed to extreme temperatures or magnetic fields.
  • The MCR1101-50-3 has built-in EMI and RFI filtering, and Aceinna recommends following proper PCB design and layout practices to minimize the impact of external interference. Additionally, engineers can use shielding and grounding techniques to further reduce the effects of EMI and RFI.
  • The typical lead time and MOQ for the MCR1101-50-3 vary depending on the region and distributor. Engineers can contact Aceinna's sales team or authorized distributors for the latest information. As for alternative or equivalent parts, Aceinna may offer similar products or recommend third-party options, but engineers should verify the specifications and performance before making a substitution.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCR1101-50-3 Overview

Use the download button to access the MCR1101-50-3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCR11, or try a keyword search, such as Other Sensors/Transducers
