MCR1101-50-5 - ACEINNA

Description: Board Mount Current Sensors High Accuracy 50A Current Sensor, 5V, Ratiometric, 1.5MHz 3dB BW, OCP, Galvanic Isolation. UL/IEC/EN60950-1 and UL1577 certified. SOIC-16

Download MCR1101-50-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

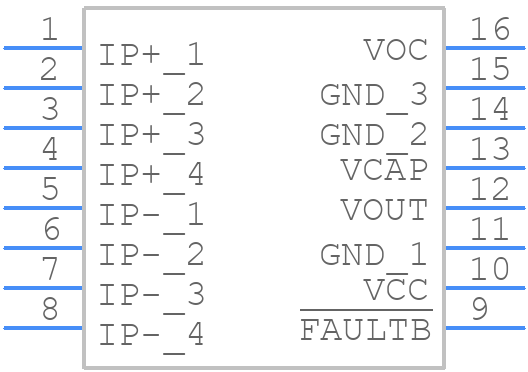

MCR1101-50-5 - ACEINNA - PCB symbol
click to zoom
PCB Footprints
MCR1101-50-5 - ACEINNA PCB footprint - Other - Other - 16 Lead SOIC
click to zoom
3D Models
MCR1101-50-5 - ACEINNA - 3D model - Other - 16 Lead SOIC
click to zoom

MCR1101-50-5 Details

  • Manufacturer Part Number:

    MCR1101-50-5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    SOIC-16

  • Factory Lead Time:

    36 Weeks

  • Manufacturer:

    Aceinna

  • Body Breadth:

    7.5 mm

  • Body Height:

    2.54 mm

  • Body Length or Diameter:

    10.21 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

MCR1101-50-5 Frequently Asked Questions (FAQs)

  • Aceinna recommends a 4-layer PCB with a solid ground plane, and a separate power plane for the sensor. Keep the sensor away from high-frequency components and ensure good thermal conductivity to prevent overheating.
  • Calibration involves applying a known magnetic field and measuring the sensor's output. Aceinna provides a calibration guide and software tools to assist with the process. It's recommended to calibrate the sensor in the final application environment.
  • Power up the sensor in the following sequence: VDD, VDDIO, and then the clock signal. Ensure that the power supplies are stable and within the recommended voltage range before applying the clock signal.
  • Use proper shielding, grounding, and filtering techniques to minimize EMI and RFI. Ensure that the sensor is placed in a shielded enclosure, and use EMI filters on the power and signal lines.
  • The MCR1101-50-5 is rated for operation from -40°C to 125°C. However, optimal performance is achieved between 0°C to 85°C. Ensure proper thermal management and heat sinking to prevent overheating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCR1101-50-5 Overview

Use the download button to access the MCR1101-50-5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCR11, or try a keyword search, such as Other Sensors/Transducers
