The datasheet provides general guidelines, but for optimal thermal performance, it's recommended to follow Monolithic Power Systems' application note AN-114, which provides detailed PCB layout recommendations, including thermal pad connection and heat sink design.
To ensure reliable start-up and shutdown, it's essential to follow the recommended power-up and power-down sequencing, as outlined in the datasheet. Additionally, ensure that the input voltage rises and falls monotonically, and that the input capacitance is within the recommended range.
While the datasheet doesn't specify a maximum allowed input voltage ripple, it's generally recommended to keep the input voltage ripple below 10% of the nominal input voltage to ensure stable operation and prevent oscillations.
The MCS1802GS-05-Z is rated for operation up to 125°C, but it's essential to consider the device's power dissipation, thermal resistance, and PCB layout when operating in high-temperature environments. Ensure that the device's junction temperature remains within the recommended range to prevent thermal shutdown or damage.
To troubleshoot oscillations or instability issues, check the input voltage, output voltage, and output current waveforms using an oscilloscope. Ensure that the input voltage is within the recommended range, and that the output filter components are properly selected and placed. Consult the datasheet and application notes for guidance on component selection and PCB layout.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
MCS1802GS-05-Z Overview

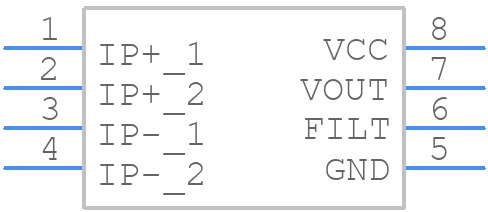

Use the download button to access the MCS1802GS-05-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCS18,
or try a keyword search, such as Other Sensors/Transducers
