MCS1802GS-10-Z - Monolithic Power Systems (MPS)

Description: 3.3V Single Supply • Immune to External Magnetic Fields by Differential Sensing • 2.2kVRMS Minimum Isolation Voltage • Operating Temperature: -40°C to +125°C • 0.9mΩ Internal Conductor Resistance • ±5A to ±50A Bi-directional Range • Adjustable Bandwidth up to 100kHz • 4μs Output Rising Time • Ratiometric Output from Supply Voltage • Output Proportional to AC or DC Currents • Factory-Trimmed for Accuracy • No Magnetic Hysteresis • Available in an SOIC-8 Package

Download MCS1802GS-10-Z Model

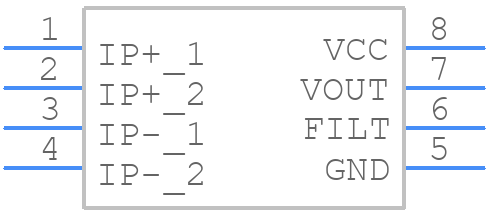

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MCS1802GS-10-Z - Monolithic Power Systems (MPS) PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8
click to zoom
3D Models
MCS1802GS-10-Z - Monolithic Power Systems (MPS)  - 3D model - Small Outline Packages - SOIC-8
click to zoom

MCS1802GS-10-Z Details

  • Manufacturer Part Number:

    MCS1802GS-10-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Country Of Origin:

    Mainland China

  • Factory Lead Time:

    24 Weeks

  • Date Of Intro:

    2019-05-08

  • Manufacturer:

    Monolithic Power Systems

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.375 mm

  • Body Length or Diameter:

    4.9 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.24

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

MCS1802GS-10-Z Frequently Asked Questions (FAQs)

  • A good PCB layout for the MCS1802GS-10-Z should include a solid ground plane, wide power traces, and a thermal relief pattern under the device to facilitate heat dissipation. A 4-layer PCB with a dedicated thermal layer is recommended.
  • To ensure proper biasing, connect the VIN pin to a stable input voltage source, and decouple the input with a 10uF capacitor. The EN pin should be tied to VIN or a logic signal, and the FB pin should be connected to a resistive divider for voltage feedback.
  • A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for input decoupling. X5R or X7R dielectric types are suitable for this application.
  • The output voltage ripple can be estimated using the formula: ΔVout = (Iout * ESL) / (Cout * fsw), where ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency.
  • The MCS1802GS-10-Z is rated for operation up to 85°C ambient temperature, but derating is required for temperatures above 70°C. Consult the datasheet for thermal derating curves.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCS1802GS-10-Z Overview

Use the download button to access the MCS1802GS-10-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCS18, or try a keyword search, such as Other Sensors/Transducers
