A good PCB layout for the MCS1802GS-40-Z should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper coverage around the device. Avoid routing high-current traces under the device, and keep the thermal vias as close to the device as possible.
To ensure reliable operation in high-temperature environments, follow the recommended operating conditions and derating guidelines in the datasheet. Additionally, consider using a heat sink or thermal interface material to improve heat dissipation. Ensure good airflow around the device, and avoid exceeding the maximum junction temperature (Tj) of 150°C.
Exceeding the maximum input voltage rating of 40V can cause permanent damage to the device, including breakdown of the internal voltage regulator, damage to the power MOSFETs, or even catastrophic failure. Always ensure that the input voltage remains within the recommended operating range to prevent damage and ensure reliable operation.
To troubleshoot output voltage instability or oscillations, check the input voltage, output load, and PCB layout. Ensure that the input voltage is within the recommended range, and the output load is within the specified current rating. Verify that the PCB layout follows the recommended guidelines, and that the output capacitor is of sufficient value and type. If issues persist, consider adding a small ceramic capacitor (e.g., 10nF) in parallel with the output capacitor to improve stability.
The recommended input capacitor type is a low-ESR ceramic capacitor (e.g., X5R or X7R) with a value of 10uF to 22uF. This helps to filter out input voltage noise and ensure stable operation. However, the optimal value may vary depending on the specific application and input voltage characteristics.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MCS1802GS-40-Z Overview

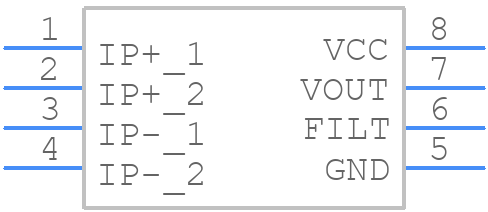

Use the download button to access the MCS1802GS-40-Z schematic symbol, PCB footprint, and 3D model.
