MCS1803GS-30-Z - Monolithic Power Systems (MPS)

Description: Current Sensor ±30A 8-Pin SOIC T/R - Tape and Reel

Download MCS1803GS-30-Z Model

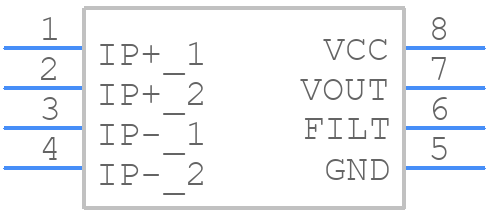

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MCS1803GS-30-Z - Monolithic Power Systems (MPS) PCB footprint - Small Outline Packages - Small Outline Packages - 8 lead soic
click to zoom
3D Models
MCS1803GS-30-Z - Monolithic Power Systems (MPS)  - 3D model - Small Outline Packages - 8 lead soic
click to zoom

MCS1803GS-30-Z Details

  • Manufacturer Part Number:

    MCS1803GS-30-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Country Of Origin:

    Mainland China

  • Factory Lead Time:

    24 Weeks

  • Date Of Intro:

    2019-05-08

  • Manufacturer:

    Monolithic Power Systems

  • Accuracy-Max (%):

    2.5%

  • Additional Feature:

    OVER CURRENT FAULT PROTECTION

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.375 mm

  • Body Length or Diameter:

    4.9 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Range:

    0.5-4.5V

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

MCS1803GS-30-Z Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the device on a thermal pad connected to a large copper area on the PCB, and ensuring good airflow around the device. A 4-layer PCB with a solid ground plane is also recommended.
  • To ensure reliable start-up of the device, make sure the input voltage rises monotonically and does not droop during start-up. Also, ensure that the input capacitor is properly sized to handle the inrush current.
  • The maximum allowed voltage on the enable pin is 6V. Exceeding this voltage may damage the device.
  • While the device is rated for operation up to 125°C, it's essential to consider the derating of the output current and power dissipation at high temperatures. Consult the datasheet and application notes for more information.
  • The power dissipation of the device can be calculated using the formula: Pd = (Vin * Iin) - (Vout * Iout). Make sure to consider the efficiency of the device and the thermal resistance of the package when calculating the power dissipation.
