MCS1806GS-3-05-Z - Monolithic Power Systems (MPS)

Description: Board Mount Current Sensors 3kVRMS Isolated Hall-Effect Current Sensor with 500VRMS Working Voltage, +/-2.5% Accuracy

Download MCS1806GS-3-05-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

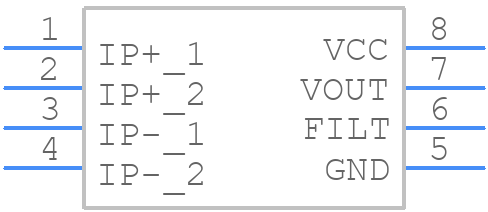

MCS1806GS-3-05-Z - Monolithic Power Systems (MPS) - PCB symbol
click to zoom
PCB Footprints
MCS1806GS-3-05-Z - Monolithic Power Systems (MPS) PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8
click to zoom
3D Models
MCS1806GS-3-05-Z - Monolithic Power Systems (MPS) - 3D model - Small Outline Packages - SOIC-8
click to zoom

MCS1806GS-3-05-Z Details

  • Manufacturer Part Number:

    MCS1806GS-3-05-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Country Of Origin:

    Mainland China

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Monolithic Power Systems

  • Accuracy-Max (%):

    2.5%

  • Additional Feature:

    OVER CURRENT FAULT PROTECTION

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.375 mm

  • Body Length or Diameter:

    4.9 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Range:

    0.30-3.30V

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES
