A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, ensuring good thermal conductivity, and keeping the surrounding area clear of other components to allow for airflow.
To handle ESD protection, use a TVS diode or a dedicated ESD protection device, such as the SMF05C, in parallel with the power supply lines. Additionally, follow proper handling and storage procedures to prevent ESD damage.
The maximum operating temperature range for the MCS2305B-TP is -40°C to 125°C, but it's recommended to operate within -20°C to 85°C for optimal performance and reliability.
Yes, the MCS2305B-TP is designed to withstand high-vibration environments, but it's essential to ensure proper PCB mounting and secure the device to prevent mechanical stress and damage.
To troubleshoot issues, start by checking the power supply, signal integrity, and PCB layout. Use oscilloscopes and logic analyzers to debug the circuit, and consult the datasheet and application notes for guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MCS2305B-TP Overview

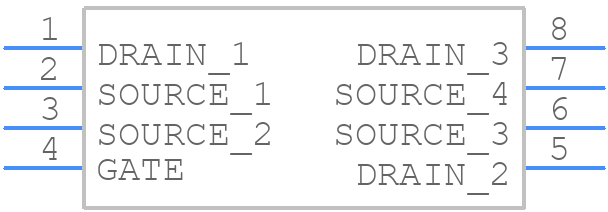

Use the download button to access the MCS2305B-TP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCS23,
or try a keyword search, such as Power Field-Effect Transistors
