MCS9990CV-AA - ASIX

Description: PCIe to 4-Port USB 2.0 Host Controller

Download MCS9990CV-AA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MCS9990CV-AA - ASIX - PCB symbol
click to zoom
PCB Footprints

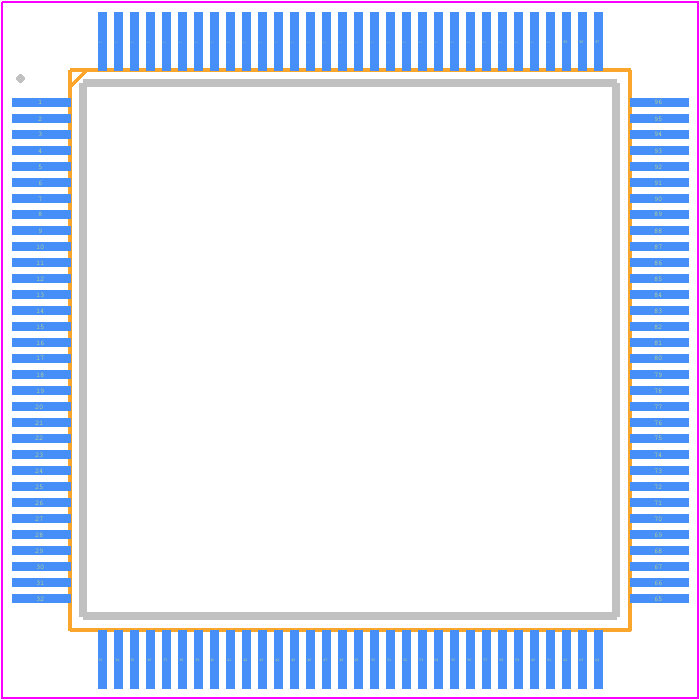

MCS9990CV-AA - ASIX PCB footprint - Quad Flat Packages - Quad Flat Packages - AX88796ALF--0
click to zoom
3D Models
MCS9990CV-AA - ASIX - 3D model - Quad Flat Packages - AX88796ALF--0
click to zoom

MCS9990CV-AA Details

  • Manufacturer Part Number:

    MCS9990CV-AA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    LQFP-128

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    ASIX Electronics Corporation

  • Bus Compatibility:

    I2C, PCI, UART, USB

  • Clock Frequency-Max:

    12 MHz

  • Data Transfer Rate-Max:

    60 MBps

  • JESD-30 Code:

    S-PQFP-G128

  • Length:

    14 mm

  • Number of Terminals:

    128

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP128,.63SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max:

    160 mA

  • Supply Voltage-Max:

    1.32 V

  • Supply Voltage-Min:

    1.08 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

MCS9990CV-AA Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the MCS9990CV-AA is 0°C to 70°C (32°F to 158°F).
  • The MCS9990CV-AA can be configured for half-duplex or full-duplex mode through the MDIX pin. Connecting the MDIX pin to VCC configures the device for half-duplex mode, while connecting it to GND configures it for full-duplex mode.
  • The MCS9990CV-AA supports a maximum cable length of 100 meters (328 feet) for 10/100Mbps Ethernet applications.
  • The MCS9990CV-AA has a built-in power management feature that can be controlled through the PWON pin. By asserting the PWON pin, the device can be powered down to reduce power consumption.
  • The typical power consumption of the MCS9990CV-AA is around 350mW (typical) and 500mW (maximum) for 10/100Mbps Ethernet applications.
