MCSJK-7I-8.00-10-30-60-B-30 footprint, schematic symbol and 3D model by Multicomp Pro

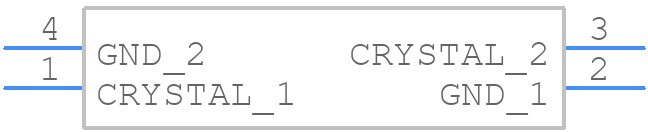

Symbol

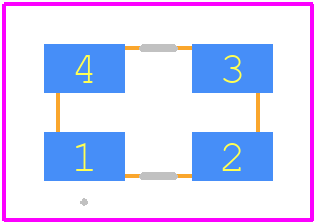

PCB Footprints

3D Models

MCSJK-7I-8.00-10-30-60-B-30 Details

The operating temperature range is -40°C to +125°C, as per the datasheet. However, it's recommended to operate within -20°C to +85°C for optimal performance.
Yes, the MCSJK-7I-8.00-10-30-60-B-30 is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
The recommended storage condition is in a dry, cool place, away from direct sunlight, with a temperature range of -20°C to +40°C and relative humidity below 80%.
While the MCSJK-7I-8.00-10-30-60-B-30 is designed to be rugged, it's recommended to consult with the manufacturer or a qualified engineer to ensure the component can withstand the specific vibration requirements of your application.
The MCSJK-7I-8.00-10-30-60-B-30 is not designed for use in humid or wet environments. If your application requires operation in such conditions, you may need to consider additional protection or a different component.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the MCSJK-7I-8.00-10-30-60-B-30 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MCSJK, or try a keyword search, such as Quartz Crystals
