The recommended PCB footprint for the MCTL300N10YHE3-TP is a 10-pin QFN package with a 3x3mm body size and 0.5mm pitch. The datasheet provides a recommended land pattern and solder mask layout.
The MCTL300N10YHE3-TP has a thermal pad on the bottom of the package that should be connected to a thermal ground plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer. The datasheet provides thermal resistance and power dissipation guidelines.
The recommended operating voltage range for the MCTL300N10YHE3-TP is 2.7V to 5.5V. Operating the device outside of this range may affect its performance and reliability.
The MCTL300N10YHE3-TP requires a proper bias voltage on the VCC pin to operate correctly. The datasheet provides guidelines for bias voltage and current requirements. Additionally, the device may require external resistors and capacitors to ensure proper biasing and stability.
The MCTL300N10YHE3-TP has built-in ESD protection diodes on the input pins. However, additional external ESD protection measures such as TVS diodes or ESD arrays may be necessary depending on the application. The datasheet provides guidelines for ESD protection and latch-up prevention.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MCTL300N10YHE3-TP Overview

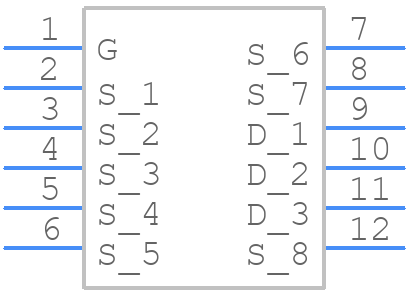

Use the download button to access the MCTL300N10YHE3-TP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCTL3,
or try a keyword search, such as Power Field-Effect Transistors
