MCU65N10Y-TP - MCC

Description: N-Channel 100 V 65A (Tc) 96W (Tj) Surface Mount DPAK (TO-252)

Download MCU65N10Y-TP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MCU65N10Y-TP - MCC - PCB symbol
click to zoom
PCB Footprints

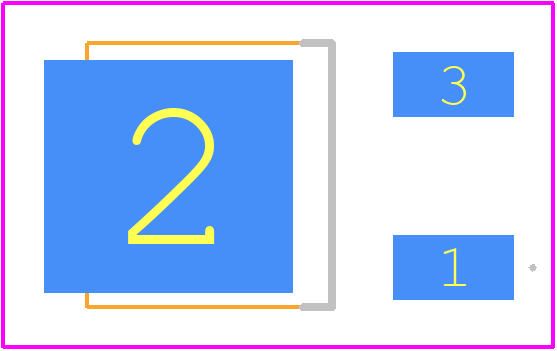

MCU65N10Y-TP - MCC PCB footprint - Other - Other - MCU65N10Y-TP-6
click to zoom
3D Models
MCU65N10Y-TP - MCC - 3D model - Other - MCU65N10Y-TP-6
click to zoom

MCU65N10Y-TP Details

  • Manufacturer Part Number:

    MCU65N10Y-TP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    Micro Commercial Components

  • YTEOL:

    6

  • DS Breakdown Voltage-Min:

    100 V

  • Drain Current-Max (ID):

    65 A

  • Drain-source On Resistance-Max:

    0.0115 Ω

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Time@Peak Reflow Temperature-Max (s):

    10

MCU65N10Y-TP Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for MCU65N10Y-TP is -40°C to 125°C.
  • Yes, MCU65N10Y-TP is a RoHS-compliant component, meaning it meets the European Union's Restriction of Hazardous Substances directive.
  • The typical lead time for MCU65N10Y-TP can vary depending on the supplier and availability, but it's usually around 4-6 weeks.
  • Yes, MCU65N10Y-TP is suitable for high-reliability applications due to its high-quality construction and rigorous testing.
  • Yes, MCU65N10Y-TP is compatible with lead-free soldering processes, making it suitable for modern manufacturing techniques.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCU65N10Y-TP Overview

Use the download button to access the MCU65N10Y-TP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCU65, or try a keyword search, such as Power Field-Effect Transistors
