MCW03-05D12 - Minmax

Description: The MCW03 series is a range of isolated 3W DC-DC converter modules featuring fully regulated output and wide 2:1 input voltage ranges. The product comes in a SIP-8 package with a very small footprint occupying only 0.3 square in. on the PCB.

Download MCW03-05D12 Model

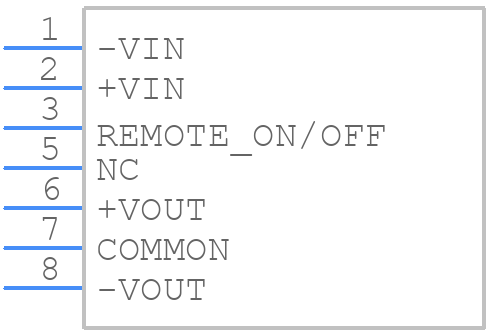

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MCW03-05D12 - Minmax PCB footprint - Other - Other - MCW03-05D12-2
click to zoom
3D Models
MCW03-05D12 - Minmax  - 3D model - Other - MCW03-05D12-2
click to zoom

MCW03-05D12 Details

  • Manufacturer Part Number:

    MCW03-05D12

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SIP-8/7

  • ECCN Code:

    EAR99

  • Manufacturer:

    Minmax Technology Co Ltd

  • YTEOL:

    5

  • Additional Feature:

    -12V ADDITIONAL OUTPUT AVAILABLE

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    C-UL-US, CB, CUL, EN, IEC, UL

  • Efficiency (Main Output):

    79%

  • Input Voltage-Max:

    9 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PSIP-T7

  • Length:

    21.8 mm

  • Line Regulation-Max:

    0.5%

  • Load Regulation-Max:

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.125 A

  • Output Voltage-Max:

    12.12 V

  • Output Voltage-Min:

    11.88 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SIP

  • Package Equivalence Code:

    SIP7/8,.11

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Protections:

    OVER CURRENT, OVER LOAD, SHORT CIRCUIT

  • Ripple Voltage (Main Out):

    0.0265125 Vrms

  • Screening Level:

    EN/IEC/UL 62368-1

  • Seated Height-Max:

    11.7 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    SINGLE

  • Total Power Output-Max:

    3 W

  • Trim/Adjustable Output:

    NO

  • Width:

    9.3 mm

MCW03-05D12 Frequently Asked Questions (FAQs)

  • The recommended PCB layout involves placing the component on a thermal pad with a minimum size of 10mm x 10mm, and ensuring good thermal conductivity to the surrounding copper area. A thermal via array underneath the component can also help with heat dissipation.
  • To ensure reliability and long-term stability, it's essential to follow the recommended operating conditions, including input voltage, output voltage, and ambient temperature. Additionally, proper PCB design, component selection, and thermal management are crucial. Regular monitoring of the converter's performance and adjusting the design as needed can also help.
  • Common causes of output voltage deviation or instability include input voltage fluctuations, temperature changes, component tolerances, and PCB layout issues. Other factors such as output capacitor selection, feedback loop design, and noise coupling can also contribute to output voltage instability.
  • To troubleshoot and debug issues, start by verifying the input voltage, output voltage, and current. Check the PCB layout and component placement for any errors or omissions. Use an oscilloscope to monitor the output voltage and current waveforms, and consult the datasheet for specific troubleshooting guidelines.
  • Operating the DC-DC converter outside its recommended specifications can lead to reduced performance, decreased efficiency, and potentially even damage to the component. This can result in overheating, output voltage instability, or even complete failure. It's essential to adhere to the recommended operating conditions to ensure reliable and stable operation.
