Description:The MCW03 series is a range of isolated 3W DC-DC converter modules featuring fully regulated output and wide 2:1 input voltage ranges. The product comes in a SIP-8 package with a very small footprint occupying only 0.3 square in. on the PCB.
The recommended PCB layout involves placing the DC-DC converter near the power source, using a solid ground plane, and keeping the input and output capacitors close to the converter. For thermal management, ensure good airflow, use a heat sink if necessary, and follow the recommended operating temperature range.
To ensure EMC and reduce EMI, use a metal shielded enclosure, keep the converter away from sensitive components, use a common-mode choke, and follow proper PCB layout and grounding techniques. Additionally, consider adding EMI filters or shielding to the input and output lines.
The maximum allowable capacitance on the output is typically limited to 10-20uF. Exceeding this value can affect the converter's stability and cause oscillations. It's essential to follow the recommended output capacitance value to ensure stable operation.
The MCW03-05D15 is designed to handle input voltage transients, but it's essential to follow the recommended input voltage derating factors to ensure reliable operation. Typically, a 10-20% derating factor is recommended to account for input voltage variations and transients.
The recommended input filtering components include a 1-2uF ceramic capacitor and a 1-2uH inductor. For output filtering, a 1-2uF ceramic capacitor and a 1-2uH inductor are also recommended. These components help reduce noise and ripple, ensuring a stable output voltage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MCW03-05D15 Overview

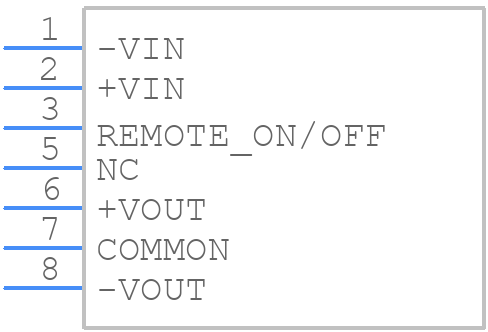

Use the download button to access the MCW03-05D15 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCW03,
or try a keyword search, such as Power Supply Modules
