Description:The MCW03 series is a range of isolated 3W DC-DC converter modules featuring fully regulated output and wide 2:1 input voltage ranges. The product comes in a SIP-8 package with a very small footprint occupying only 0.3 square in. on the PCB.
The recommended PCB layout involves placing the DC-DC converter near the input voltage source, using a solid ground plane, and keeping the input and output capacitors close to the converter. For thermal management, ensure good airflow, use a heat sink if necessary, and keep the ambient temperature within the specified range.
To ensure EMC, follow proper PCB design and layout guidelines, use shielding if necessary, and ensure that the converter is placed at least 10mm away from other components. Additionally, use a common-mode choke and filter capacitors to reduce EMI.
The maximum allowable capacitance for the input capacitor is 220uF, and for the output capacitor, it is 100uF. Exceeding these values may affect the converter's stability and performance.
Yes, the MCW03-05S05 is designed to withstand vibrations up to 10G. However, it's essential to ensure that the converter is properly secured to the PCB and that the PCB is designed to withstand the vibrations.
The derating curve for the MCW03-05S05 is typically 2.5% per degree Celsius above 60°C. This means that for every degree above 60°C, the output power should be reduced by 2.5% to ensure reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MCW03-05S05 Overview

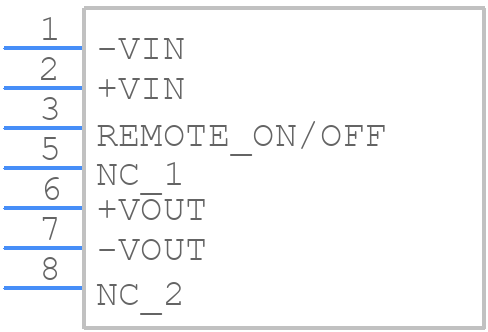

Use the download button to access the MCW03-05S05 schematic symbol, PCB footprint, and 3D model.
