MCW03-05S12 - Minmax

Description: The MCW03 series is a range of isolated 3W DC-DC converter modules featuring fully regulated output and wide 2:1 input voltage ranges. The product comes in a SIP-8 package with a very small footprint occupying only 0.3 square in. on the PCB.

Download MCW03-05S12 Model

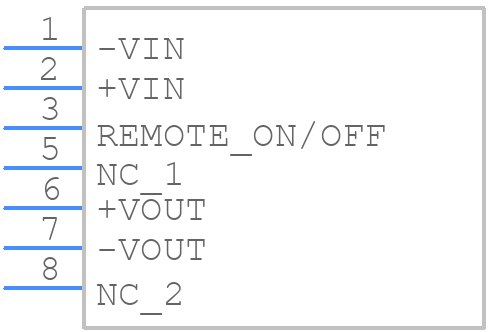

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MCW03-05S12 - Minmax PCB footprint - Other - Other - MCW03-05S12
click to zoom
3D Models
MCW03-05S12 - Minmax  - 3D model - Other - MCW03-05S12
click to zoom

MCW03-05S12 Details

  • Manufacturer Part Number:

    MCW03-05S12

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SIP-8/7

  • ECCN Code:

    EAR99

  • Manufacturer:

    Minmax Technology Co Ltd

  • YTEOL:

    5

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    C-UL-US, CB, CUL, EN, IEC, UL

  • Efficiency (Main Output):

    79%

  • Input Voltage-Max:

    9 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PSIP-T7

  • Length:

    21.8 mm

  • Line Regulation-Max:

    0.5%

  • Load Regulation-Max:

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.25 A

  • Output Voltage-Max:

    12.12 V

  • Output Voltage-Min:

    11.88 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SIP

  • Package Equivalence Code:

    SIP7/8,.11

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Protections:

    OVER CURRENT, OVER LOAD, SHORT CIRCUIT

  • Ripple Voltage (Main Out):

    0.0265125 Vrms

  • Screening Level:

    EN/IEC/UL 62368-1

  • Seated Height-Max:

    11.7 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    SINGLE

  • Total Power Output-Max:

    3 W

  • Trim/Adjustable Output:

    NO

  • Width:

    9.3 mm

MCW03-05S12 Frequently Asked Questions (FAQs)

  • The recommended PCB layout involves placing the DC-DC converter near the power source, using a solid ground plane, and keeping the input and output capacitors close to the converter. For thermal management, ensure good airflow, use a heat sink if necessary, and follow the recommended operating temperature range.
  • To ensure EMC and EMI compliance, follow the recommended layout and grounding guidelines, use a metal shield or enclosure, and add EMI filters or ferrite beads to the input and output lines if necessary. Also, ensure that the converter is operated within the specified frequency range.
  • The maximum allowable capacitance for the input and output capacitors is not explicitly stated in the datasheet. However, as a general rule, it's recommended to use capacitors with a capacitance value that is within 10-20% of the recommended value to ensure stable operation and prevent oscillations.
  • While the MCW03-05S12 is a reliable DC-DC converter, it's essential to evaluate its suitability for high-reliability or safety-critical applications. Consider factors such as the converter's MTBF, failure modes, and fault tolerance. You may need to perform additional testing, analysis, or certification to ensure compliance with specific industry standards or regulations.
  • To troubleshoot common issues, start by verifying the input voltage, output load, and ambient temperature are within the specified ranges. Check the PCB layout and thermal management to ensure they meet the recommended guidelines. Use an oscilloscope to monitor the output voltage and current, and consult the datasheet or contact Minmax Technology Co Ltd's technical support for further assistance.
