Description:The MCW03 series is a range of isolated 3W DC-DC converter modules featuring fully regulated output and wide 2:1 input voltage ranges. The product comes in a SIP-8 package with a very small footprint occupying only 0.3 square in. on the PCB.
The recommended PCB layout involves placing the DC-DC converter near the power source, using a solid ground plane, and keeping the input and output capacitors close to the converter. For thermal management, ensure good airflow, use a heat sink if necessary, and follow the recommended operating temperature range.
To ensure EMC, follow proper PCB design and layout guidelines, use shielding if necessary, and consider adding EMI filters or common-mode chokes to the input and output lines. Additionally, ensure the converter is operated within the specified frequency range and follow the manufacturer's recommendations for EMC compliance.
The maximum allowable capacitance for the input and output capacitors is not explicitly stated in the datasheet. However, as a general rule, it's recommended to use capacitors with a capacitance value close to the recommended values in the datasheet (e.g., 10uF for input and 22uF for output). Excessive capacitance can lead to instability or affect the converter's performance.
While the MCW03-24D15 is a reliable DC-DC converter, it's essential to evaluate its suitability for high-reliability or safety-critical applications. Consider factors such as the converter's MTBF (mean time between failures), failure modes, and the manufacturer's testing and certification processes. Additionally, consult with the manufacturer or a qualified engineer to ensure the converter meets the specific requirements of your application.
To troubleshoot common issues, start by verifying the input voltage, output load, and ambient temperature are within the specified ranges. Check the PCB layout and thermal management to ensure they meet the recommended guidelines. Use an oscilloscope to monitor the output voltage and current, and consult the datasheet or manufacturer's application notes for troubleshooting guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MCW03-24D15 Overview

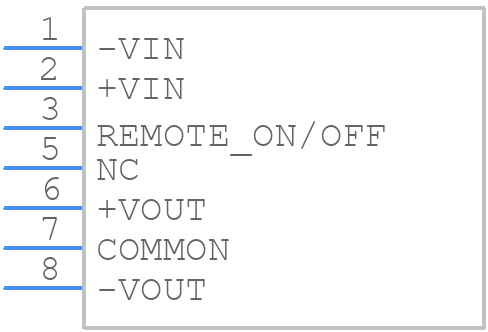

Use the download button to access the MCW03-24D15 schematic symbol, PCB footprint, and 3D model.
