Description:The MCW03 series is a range of isolated 3W DC-DC converter modules featuring fully regulated output and wide 2:1 input voltage ranges. The product comes in a SIP-8 package with a very small footprint occupying only 0.3 square in. on the PCB.
The recommended PCB layout involves placing the DC-DC converter near the power source, using a solid ground plane, and keeping the input and output capacitors close to the converter. Thermal management involves providing adequate airflow, using a heat sink if necessary, and ensuring the ambient temperature is within the specified range.
To ensure EMC, follow proper PCB layout and grounding practices, use shielding if necessary, and ensure the converter is placed at a safe distance from other components. Additionally, consider using EMI filters or common-mode chokes to reduce electromagnetic interference.
The maximum allowable capacitance for the input and output capacitors is not explicitly stated in the datasheet. However, as a general rule, it's recommended to use capacitors with a capacitance value close to the recommended value in the datasheet to ensure stable operation and minimize voltage ripple.
The MCW03-24S033 is designed to meet the requirements of IEC 60950-1 and UL 60950-1, which includes vibration and shock testing. However, it's recommended to consult with Minmax Technology Co Ltd or perform additional testing to ensure the converter meets the specific requirements of your application.
The recommended soldering profile involves using a reflow soldering process with a peak temperature of 260°C (500°F) and a dwell time of 20-30 seconds. It's essential to follow the recommended soldering profile to prevent damage to the component.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MCW03-24S033 Overview

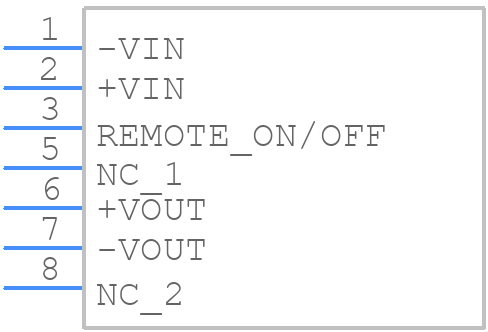

Use the download button to access the MCW03-24S033 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCW03,
or try a keyword search, such as Power Supply Modules
