MCW1013 - Minmax

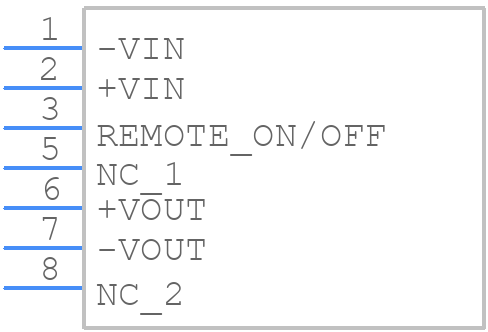

MCW1013 Details

• Manufacturer Part Number:

  MCW1013

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  SIP-8/7

• ECCN Code:

  EAR99

• Manufacturer:

  Minmax Technology Co Ltd

• YTEOL:

  5

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  CB, CSA, CUL, EN, IEC, UL

• Efficiency (Main Output):

  75%

• Input Voltage-Max:

  9 V

• Input Voltage-Min:

  4.5 V

• Input Voltage-Nom:

  5 V

• JESD-30 Code:

  R-PSIP-T7

• Length:

  21.8 mm

• Line Regulation-Max:

  0.5%

• Load Regulation-Max:

  0.75%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  7

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.167 A

• Output Voltage-Max:

  12.24 V

• Output Voltage-Min:

  11.76 V

• Output Voltage-Nom:

  12 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SIP

• Package Equivalence Code:

  SIP7/8,.11

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Protections:

  OVER LOAD, SHORT CIRCUIT, UNDER VOLTAGE

• Ripple Voltage (Main Out):

  0.017675 Vrms

• Screening Level:

  EN/IEC/UL 62368-1

• Seated Height-Max:

  11.7 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  SINGLE

• Total Power Output-Max:

  2 W

• Trim/Adjustable Output:

  NO

• Width:

  9.3 mm
