Description:The MCW1000 series is a range of isolated 2W DC-DC converter modules featuring fully regulated output and wide 2:1 input voltage ranges. The product comes in a SIP-8 package with a very small footprint occupying only 0.3 square in. on the PCB.
Minmax recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A minimum of 2oz copper thickness is recommended for the top and bottom layers. Additionally, a thermal pad on the bottom of the device should be connected to a heat sink or a thermal interface material.
The MCW1022 is designed to operate within a temperature range of -40°C to 85°C. Ensure proper thermal management, avoid overheating, and keep the device away from high-temperature sources. Use a heat sink or thermal interface material if necessary, and monitor the device's temperature using the built-in thermal monitoring feature.
Minmax recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF, and a voltage rating of 25V or higher. The capacitor should be placed as close as possible to the VIN pin of the device.
Check the input voltage, output load, and PCB layout for any issues. Verify that the device is properly soldered and that there are no shorts or opens on the PCB. Use an oscilloscope to monitor the output voltage and current. If issues persist, contact Minmax technical support for further assistance.
Yes, the MCW1022 is compatible with lead-free soldering processes. Minmax ensures that the device meets the requirements of the RoHS directive and is suitable for use in lead-free soldering applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MCW1022 Overview

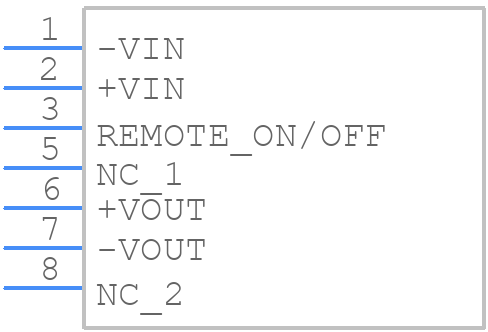

Use the download button to access the MCW1022 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCW10,
or try a keyword search, such as Power Supply Modules
