MCW1031 - Minmax

Description: The MCW1000 series is a range of isolated 2W DC-DC converter modules featuring fully regulated output and wide 2:1 input voltage ranges. The product comes in a SIP-8 package with a very small footprint occupying only 0.3 square in. on the PCB.

Download MCW1031 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

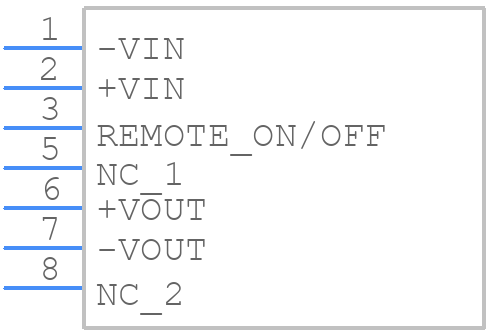

MCW1031 - Minmax - PCB symbol
click to zoom
PCB Footprints
MCW1031 - Minmax PCB footprint - Other - Other - MCW1031
click to zoom
3D Models
MCW1031 - Minmax - 3D model - Other - MCW1031
click to zoom

MCW1031 Details

  • Manufacturer Part Number:

    MCW1031

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SIP-8/7

  • ECCN Code:

    EAR99

  • Manufacturer:

    Minmax Technology Co Ltd

  • YTEOL:

    5

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CB, CSA, CUL, EN, IEC, UL

  • Efficiency (Main Output):

    72%

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PSIP-T7

  • Length:

    21.8 mm

  • Line Regulation-Max:

    0.5%

  • Load Regulation-Max:

    0.75%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.5 A

  • Output Voltage-Max:

    3.366 V

  • Output Voltage-Min:

    3.234 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SIP

  • Package Equivalence Code:

    SIP7/8,.11

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Protections:

    OVER LOAD, SHORT CIRCUIT, UNDER VOLTAGE

  • Ripple Voltage (Main Out):

    0.017675 Vrms

  • Screening Level:

    EN/IEC/UL 62368-1

  • Seated Height-Max:

    11.7 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    SINGLE

  • Total Power Output-Max:

    2 W

  • Trim/Adjustable Output:

    NO

  • Width:

    9.3 mm

MCW1031 Frequently Asked Questions (FAQs)

  • For optimal performance, it's recommended to follow a 4-layer PCB stack-up with a solid ground plane, and to place thermal vias under the device to dissipate heat. A minimum of 2oz copper thickness is recommended for the PCB.
  • To ensure EMC compliance, it's recommended to follow proper PCB layout and shielding techniques, such as using a metal shield can or a mu-metal shield around the device. Additionally, ensure that the input and output cables are properly filtered and shielded.
  • The recommended input voltage range for the MCW1031 is 36-72V. Operating within this range ensures optimal efficiency, which is typically above 90%. Operating outside this range may reduce efficiency and affect the device's reliability.
  • To protect the MCW1031 from overvoltage and overcurrent conditions, it's recommended to use a fuse or a current limiting resistor in series with the input, and to add overvoltage protection (OVP) and undervoltage protection (UVP) circuits to prevent damage from voltage transients.
  • The maximum operating temperature range for the MCW1031 is -40°C to 85°C. Operating above 85°C can reduce the device's reliability and lifespan. It's recommended to ensure proper airflow and heat dissipation to maintain a safe operating temperature.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCW1031 Overview

Use the download button to access the MCW1031 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCW10, or try a keyword search, such as Power Supply Modules
