MCWI02-24D05 - Minmax

Description: The MCWI02 series is a range of isolated 2W DC-DC converter modules featuring fully regulated output and ultra-wide 4:1 input voltage ranges. The product comes in a SIP-8 package with a very small footprint occupying only 2.0 0.32 square in. on the PCB.

Download MCWI02-24D05 Model

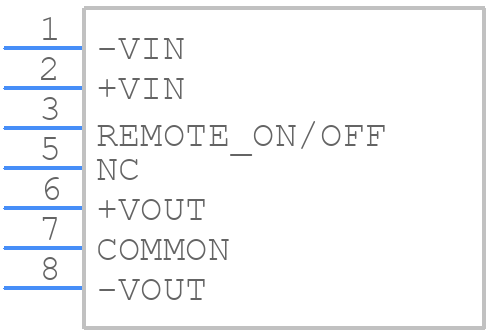

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MCWI02-24D05 - Minmax PCB footprint - Other - Other - MCWI02-24D05-1
click to zoom
3D Models
MCWI02-24D05 - Minmax  - 3D model - Other - MCWI02-24D05-1
click to zoom

MCWI02-24D05 Details

  • Manufacturer Part Number:

    MCWI02-24D05

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SIP-8/7

  • ECCN Code:

    EAR99

  • Manufacturer:

    Minmax Technology Co Ltd

  • YTEOL:

    5

  • Additional Feature:

    -5V ADDITIONAL OUTPUT AVAILABLE

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    C-UL-US, CB, CE, CSA, CUL, EN, IEC, UL

  • Efficiency (Main Output):

    80%

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PSIP-T7

  • Length:

    21.8 mm

  • Line Regulation-Max:

    0.5%

  • Load Regulation-Max:

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    90 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.2 A

  • Output Voltage-Max:

    5.1 V

  • Output Voltage-Min:

    4.9 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SIP

  • Package Equivalence Code:

    SIP7/8,.11

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Protections:

    OVER CURRENT, OVER LOAD, SHORT CIRCUIT

  • Ripple Voltage (Main Out):

    0.03535 Vrms

  • Screening Level:

    EN/IEC/UL 62368-1

  • Seated Height-Max:

    11.7 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    SINGLE

  • Total Power Output-Max:

    2 W

  • Trim/Adjustable Output:

    NO

  • Width:

    9.3 mm

MCWI02-24D05 Frequently Asked Questions (FAQs)

  • The recommended PCB layout involves placing the DC-DC converter near the power source, using a solid ground plane, and keeping the input and output capacitors close to the converter. For thermal management, ensure good airflow, use a heat sink if necessary, and keep the ambient temperature within the specified range.
  • To ensure EMC, follow proper PCB layout guidelines, use shielding if necessary, and consider adding EMI filters or common-mode chokes to the input and output lines. Also, ensure that the converter is placed at a safe distance from sensitive components and antennas.
  • The maximum allowable ripple current for the input and output capacitors depends on the specific capacitor type and rating. As a general guideline, the ripple current should not exceed 30-40% of the capacitor's rated current. Consult the capacitor datasheet for specific information.
  • The MCWI02-24D05 is designed to operate within a specific input voltage range (9-36V) and output voltage (24V). While it may be possible to modify the input or output voltage, this is not recommended as it may affect the converter's performance, efficiency, and reliability. Consult with Minmax Technology Co Ltd or a qualified engineer for custom designs.
  • The expected lifespan and reliability of the MCWI02-24D05 depend on various factors, including operating conditions, ambient temperature, and quality of the components. Minmax Technology Co Ltd provides a 3-year warranty, and the converter is designed to meet industrial-grade reliability standards. However, the actual lifespan may vary depending on the specific application and usage.
