Description:The MCWI05 series is a range of isolated 5W DC-DC converter modules featuring fully regulated output voltages and ultra-wide 4:1 input voltage ranges. The converters come in a very small SIP-8 package.
The recommended PCB layout involves placing the DC-DC converter near the power input, using a solid ground plane, and keeping the input and output capacitors close to the converter. For thermal management, ensure good airflow, use a heat sink if necessary, and avoid blocking the airflow around the converter.
To ensure EMC, follow proper PCB layout and grounding techniques, use shielding if necessary, and ensure that the converter is placed at least 10mm away from other components. Additionally, use a common-mode choke and filter capacitors to reduce electromagnetic interference (EMI).
The maximum allowable capacitance for the input capacitor is 220uF, and for the output capacitor, it is 470uF. Exceeding these values may affect the converter's stability and performance.
The MCWI05-12S05 is rated for operation up to 85°C. However, derating is required for temperatures above 70°C. Consult the datasheet for derating curves and ensure proper thermal management to prevent overheating.
To troubleshoot issues, check the input voltage, output load, and PCB layout. Verify that the converter is properly soldered and that the input and output capacitors are of the correct value and type. Use an oscilloscope to monitor the output voltage and current. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MCWI05-12S05 Overview

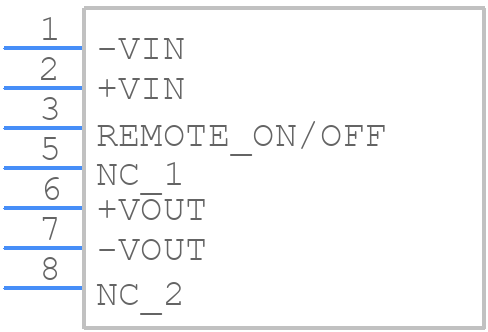

Use the download button to access the MCWI05-12S05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCWI0,
or try a keyword search, such as Power Supply Modules
