Description:The MCWI05 series is a range of isolated 5W DC-DC converter modules featuring fully regulated output voltages and ultra-wide 4:1 input voltage ranges. The converters come in a very small SIP-8 package.
The recommended PCB layout involves placing the DC-DC converter near the input voltage source, using a solid ground plane, and keeping the input and output capacitors close to the converter. For thermal management, ensure good airflow, use a heat sink if necessary, and follow the recommended operating temperature range.
To ensure EMC and reduce EMI, use a metal shield around the converter, keep the input and output cables short and twisted, use a common-mode choke, and follow the recommended layout and grounding guidelines.
The maximum allowable capacitance on the output is typically limited to 10-20uF. Exceeding this value can affect the converter's stability and cause oscillations. It's essential to follow the recommended output capacitance value to ensure stable operation.
To protect the converter from input voltage surges and spikes, use a TVS (transient voltage suppressor) diode or a varistor in parallel with the input voltage, and ensure the input voltage is within the recommended operating range.
The recommended input voltage range for optimal performance and reliability is typically 10-20% above and below the nominal input voltage rating. Operating outside this range may affect the converter's efficiency, reliability, and lifespan.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MCWI05-24S033 Overview

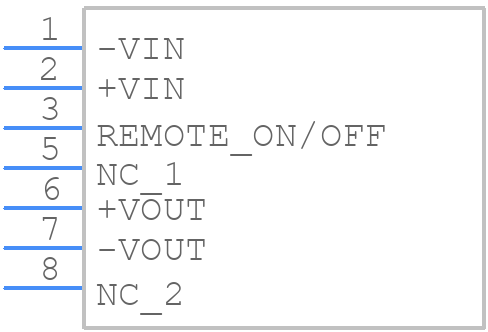

Use the download button to access the MCWI05-24S033 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCWI0,
or try a keyword search, such as Power Supply Modules
