MCX240D5 - CRYDOM

Description: Solid State Relays - PCB Mount SIP SSR 280VAC/5A 3-15VDC In, ZC

Download MCX240D5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

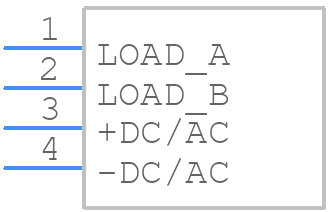

MCX240D5 - CRYDOM - PCB symbol
click to zoom
PCB Footprints

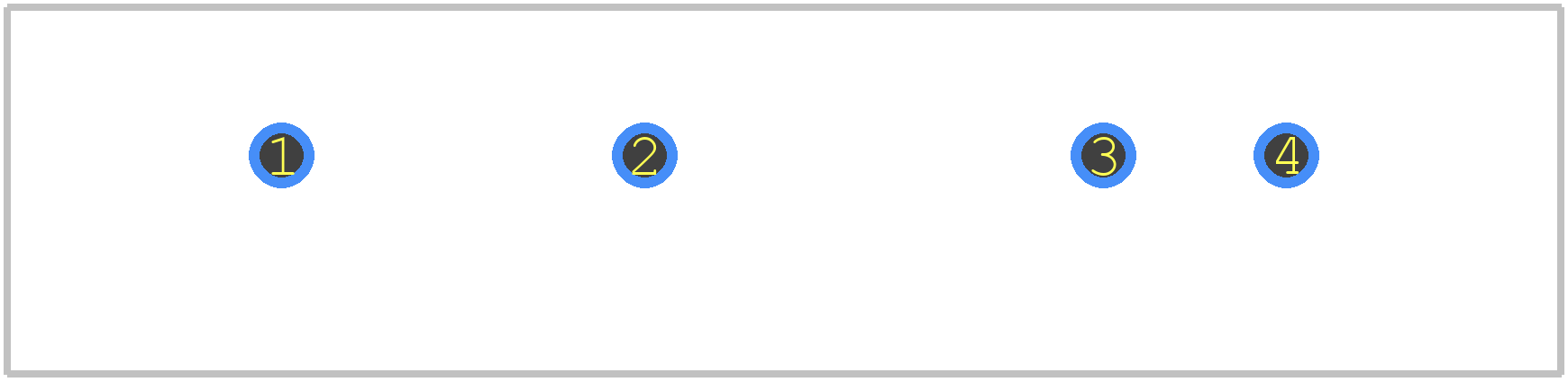

MCX240D5 - CRYDOM PCB footprint - Other - Other - SIPSSR
click to zoom
3D Models
MCX240D5 - CRYDOM - 3D model - Other - SIPSSR
click to zoom

MCX240D5 Details

  • Manufacturer Part Number:

    MCX240D5

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT, PLASTIC, SIP-4

  • HTS Code:

    8541.40.95.00

  • Manufacturer:

    Crydom Inc

  • Additional Feature:

    UL RECOGNIZED, ZERO VOLTAGE CROSSING

  • Control Current:

    0.015 A

  • Control Voltage:

    3 V

  • Forward Current-Max:

    0.015 A

  • Input Type:

    DC

  • Isolation Voltage-Max:

    4000 V

  • JESD-609 Code:

    e3

  • Number of Elements:

    1

  • On-State Current-Max:

    5 A

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRIGGER OUTPUT SSR

  • Output Circuit Type:

    Back to Back SCR

  • Overall Height:

    25.4 mm

  • Overall Length:

    43.1 mm

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

MCX240D5 Frequently Asked Questions (FAQs)

  • The MCX240D5 is designed to operate at a maximum frequency of 100 kHz.
  • Yes, the MCX240D5 is rated for operation up to 125°C, making it suitable for high-temperature applications.
  • The MCX240D5 requires a minimum load current of 10 mA to operate properly.
  • Yes, the MCX240D5 is designed and manufactured to meet the requirements of high-reliability applications, including aerospace and defense.
  • Yes, the MCX240D5 is designed to withstand high-voltage transients and has a high dv/dt rating of 10 kV/μs.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

MCX240D5 Overview

Use the download button to access the MCX240D5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCX24, or try a keyword search, such as Solid State Relays
