MCZ1210DH500L2TA0G - TDK

Description: Common Mode Chokes / Filters 0504 50ohms 2 Lines HDMI, DVI, USB3.0

Download MCZ1210DH500L2TA0G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

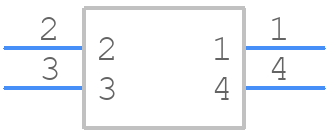

MCZ1210DH500L2TA0G - TDK - PCB symbol
click to zoom
PCB Footprints
MCZ1210DH500L2TA0G - TDK PCB footprint - Other - Other - MCZ1210DH
click to zoom
3D Models
MCZ1210DH500L2TA0G - TDK - 3D model - Other - MCZ1210DH
click to zoom

MCZ1210DH500L2TA0G Details

  • Manufacturer Part Number:

    MCZ1210DH500L2TA0G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    0

  • DC Resistance-Max:

    2.5 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.5 mm

  • Insulation Resistance-Min:

    10 MΩ

  • Length:

    1.25 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Packing Method:

    TR, 7 INCH

  • Rated Current:

    0.1 A

  • Rated Voltage:

    5 V

  • Width:

    1 mm

MCZ1210DH500L2TA0G Frequently Asked Questions (FAQs)

  • The recommended land pattern for the MCZ1210DH500L2TA0G can be found in the TDK Corporation's application note or in the IPC-7351 standard. It is essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal and mechanical stress.
  • Handle the MCZ1210DH500L2TA0G by the edges or the recommended handling areas to prevent damage to the component. Avoid touching the component's terminals or the ceramic body to prevent electrostatic discharge (ESD) damage.
  • The maximum allowable voltage derating for the MCZ1210DH500L2TA0G is typically 80% of the rated voltage. However, it is recommended to consult the datasheet or contact TDK Corporation for specific derating guidelines.
  • The MCZ1210DH500L2TA0G is rated for operation up to 125°C. However, it is recommended to consult the datasheet or contact TDK Corporation for specific guidance on using the component in high-temperature environments.
  • Store the MCZ1210DH500L2TA0G in a dry, cool place, away from direct sunlight and moisture. Use airtight packaging or desiccant packets to maintain a low humidity environment.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCZ1210DH500L2TA0G Overview

Use the download button to access the MCZ1210DH500L2TA0G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCZ12, or try a keyword search, such as Data Line Filters
