MD-002HRL - Halo Electronics

Description: LIN Transceivers TnT Module DIP Thinnet 5V 0C/+70C

Download MD-002HRL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

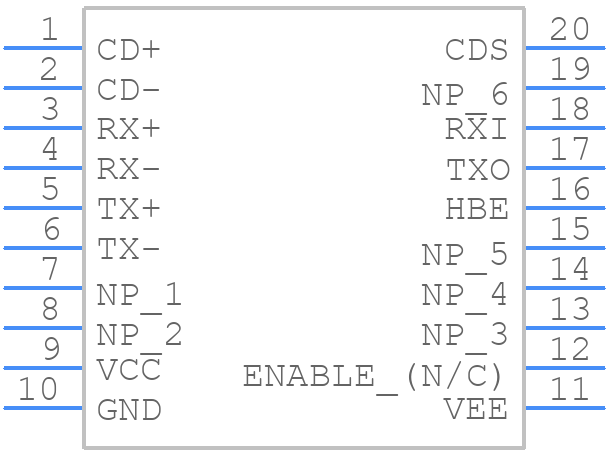

MD-002HRL - Halo Electronics - PCB symbol
click to zoom
PCB Footprints

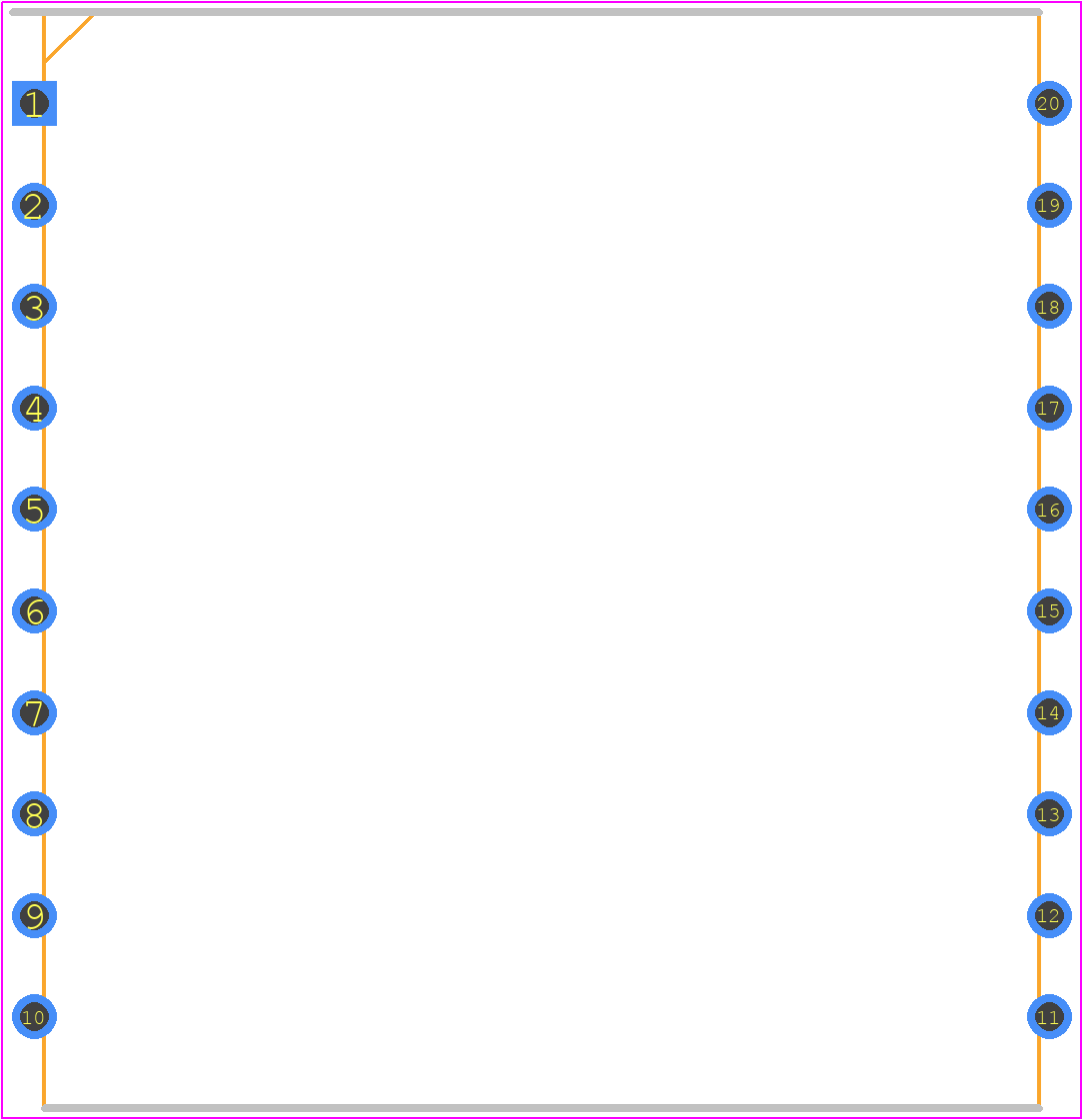

MD-002HRL - Halo Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - MD-002HRL
click to zoom
3D Models
MD-002HRL - Halo Electronics - 3D model - Dual-In-Line Packages - MD-002HRL
click to zoom

MD-002HRL Details

  • Manufacturer Part Number:

    MD-002HRL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-20/14

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Halo Electronics Inc

  • YTEOL:

    3

  • JESD-30 Code:

    R-XDMA-T14

  • Length:

    27.43 mm

  • Neg Supply Voltage-Nom:

    -9 V

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    8.89 mm

  • Supply Current-Max:

    235 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    24.89 mm

MD-002HRL Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and EMI.
  • Use a heat sink with a thermal conductivity of at least 1 W/m-K and ensure good airflow around the device. Also, derate the output current according to the temperature derating curve in the datasheet.
  • The maximum allowable voltage drop across the input capacitors is 1.5V. Exceeding this may cause instability or oscillation in the converter.
  • Yes, but ensure that the devices are synchronized and phase-shifted to minimize current ripple and EMI. Also, consult with Halo Electronics Inc for specific guidance on parallel operation.
  • Use an oscilloscope to monitor the output voltage and current waveforms. Check for proper input voltage, decoupling, and thermal management. Consult the datasheet and application notes for troubleshooting guidelines.
