Part Image

MD-30SM - Same Sky

Description: 3 Pin, Mini Circular Connector w/ Shield ,100 Vac, 12 Vdc,30 mΩ,-40 85 °C

Download MD-30SM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MD-30SM - Same Sky - PCB symbol
click to zoom
PCB Footprints

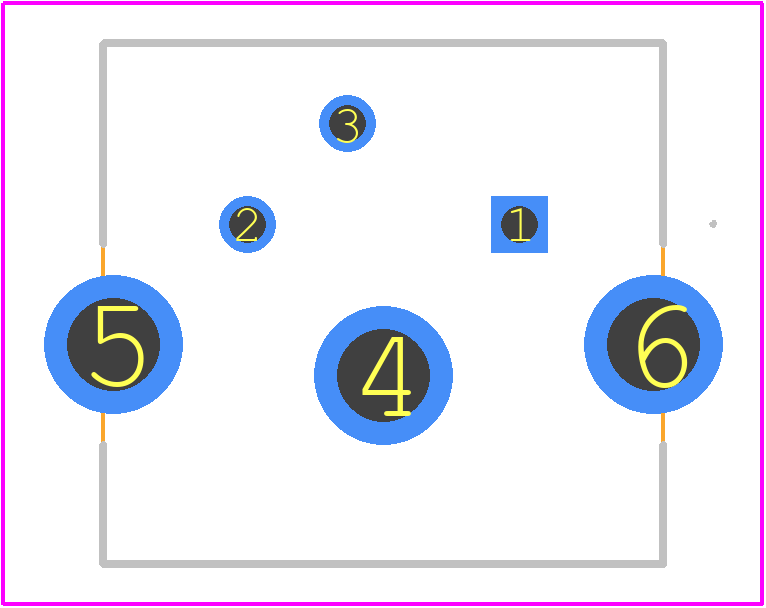

MD-30SM - Same Sky PCB footprint - Other - Other - MD-30SM-1
click to zoom
3D Models
MD-30SM - Same Sky - 3D model - Other - MD-30SM-1
click to zoom

MD-30SM Details

  • Manufacturer Part Number:

    MD-30SM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Same Sky

  • Additional Feature:

    STANDARD: 94V-0

  • Board Mounting Option:

    SOLDER HOLDING FLANGE

  • Body Breadth:

    0.504 inch

  • Body Depth:

    0.512 inch

  • Body Length:

    0.551 inch

  • Connector Type:

    MINI DIN CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Silver (Ag)

  • Contact Gender:

    FEMALE

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Resistance:

    30 mΩ

  • Contact Style:

    SQ PIN-SKT

  • Dielectric Withstanding Voltage:

    250VAC V

  • Durability:

    1000 Cycles

  • EMI Shielded:

    YES

  • Insertion Force-Max:

    44.13 N

  • Insulation Resistance:

    50000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e4

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    2 A

  • Reference Standard:

    UL

  • Shell Finish:

    TIN

  • Shell Material:

    STEEL

  • Terminal Length:

    0.138 inch

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    3

MD-30SM Frequently Asked Questions (FAQs)

  • A good PCB layout for the MD-30SM involves keeping the input and output traces separate, using a solid ground plane, and placing the module as close to the power source as possible to minimize noise and EMI.
  • To ensure the MD-30SM operates within its specified temperature range, provide adequate airflow, avoid blocking the vents, and keep the module away from heat sources. Also, consider using a heat sink or thermal interface material if the module will be operating in a high-temperature environment.
  • The recommended input capacitor value for the MD-30SM is 10uF to 22uF, with a voltage rating of at least 25V. This helps to filter out noise and ensure stable operation.
  • Yes, the MD-30SM can be used in a redundant or parallel configuration to increase power output or improve reliability. However, it's essential to ensure proper synchronization and control of the modules to avoid instability or damage.
  • To troubleshoot issues with the MD-30SM, start by checking the input voltage, output load, and ambient temperature. Verify that the module is properly installed and configured. Use an oscilloscope to check for noise or oscillations, and consult the datasheet and application notes for guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MD-30SM Overview

Use the download button to access the MD-30SM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MD-30, or try a keyword search, such as DIN Connectors

About Same Sky

CUI Devices is an electronic components manufacturer that specializes in audio components, interconnects, motion, relay, switch and thermal management solutions. The company designs and manufacturers components for use in a wide range of industries that include aerospace, industrial, medical, and telecommunications. CUI Devices is headquartered in Lake Oswego, Oregon.
