- Part Number MD-40SM
- Manufacturer Same Sky
- Pin Count 7
- Part Category Connector
- Package Category Other

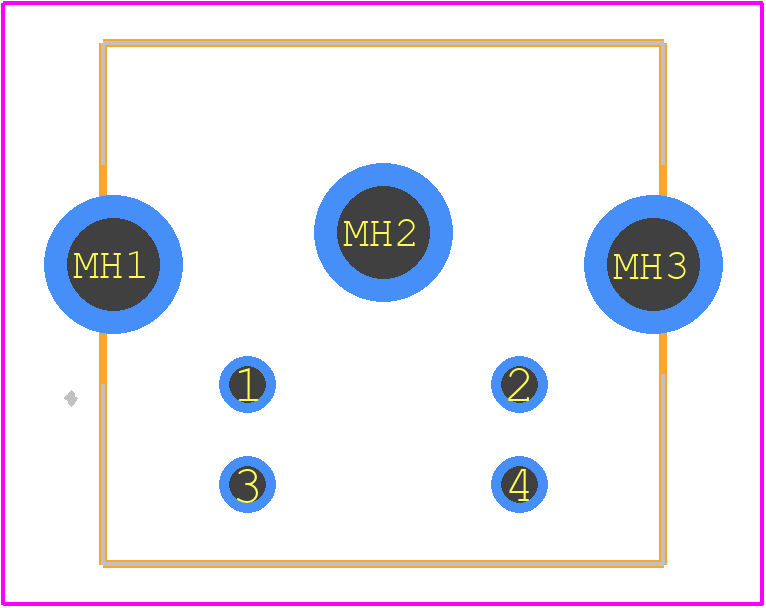

- Footprint Name Other - MD-40SM-1
- Released Date Sep 5, 2019
- Last Modified Date May 20, 2026 3:53 PM UTC
- Pinout / Pin List Click Here (Member Only)
MD-40SM Details
-
Manufacturer Part Number:
MD-40SM
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Transferred
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.20
-
Manufacturer:
Same Sky
-
YTEOL:
8
-
Connector Type:
MINI DIN CONNECTOR
-
Contact Finish Mating:
NOT APPLICABLE
-
Contact Finish Termination:
Silver (Ag)
