MD-40SV - Same Sky

Description: 4 Pin, Vertical Mount, Mini Circular Connector

Download MD-40SV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MD-40SV - Same Sky - PCB symbol
click to zoom

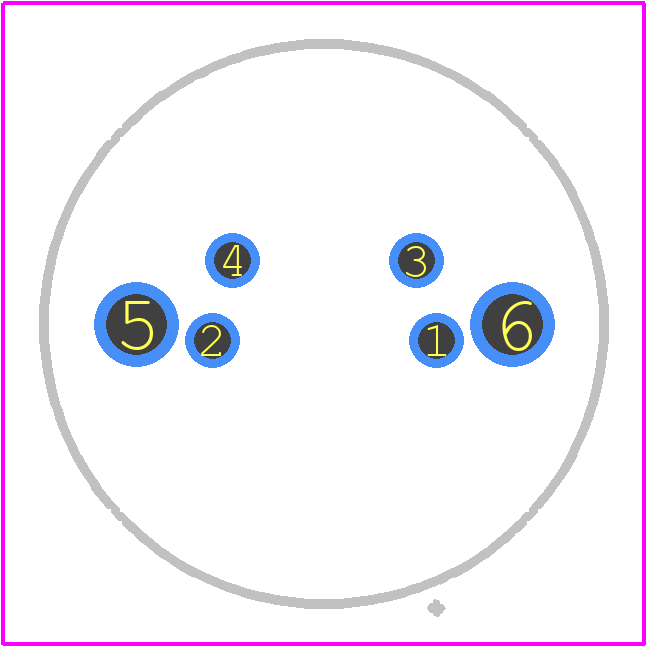

PCB Footprints
MD-40SV - Same Sky PCB footprint - Other - Other - MD-40SV
click to zoom
3D Models
MD-40SV - Same Sky - 3D model - Other - MD-40SV
click to zoom

MD-40SV Details

  • Manufacturer Part Number:

    MD-40SV

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Same Sky

  • Additional Feature:

    ROHS COMPLIANT

  • Body Depth:

    0.374 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    MINI DIN CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Silver (Ag)

  • Contact Gender:

    FEMALE

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Resistance:

    30 mΩ

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    YES

  • Dielectric Withstanding Voltage:

    250VAC V

  • Durability:

    5000 Cycles

  • Insertion Force-Max:

    44.48 N

  • Insulation Resistance:

    50000000 Ω

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e4

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    2 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.138 inch

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

  • Withdrawl Force-Min:

    8.0064 N

MD-40SV Frequently Asked Questions (FAQs)

  • CUI Devices recommends a 4-layer PCB with a solid ground plane and a separate power plane for the input and output. The layout should also minimize the loop area of the input and output traces to reduce EMI.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the output power of the MD-40SV according to the temperature derating curve provided in the datasheet. Additionally, ensure good airflow around the device and consider using a heat sink if necessary.
  • CUI Devices recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF for the input capacitor. The capacitor should be rated for the input voltage and have a low equivalent series resistance (ESR) to minimize input ripple.
  • To troubleshoot output voltage instability or oscillation, check the input voltage, output load, and PCB layout. Ensure that the input voltage is within the recommended range, the output load is within the specified range, and the PCB layout is optimized for the MD-40SV. Also, check for any signs of overheating or component failure.
  • CUI Devices recommends using a low-ESR ceramic capacitor with a value of 10uF to 47uF for the output capacitor. The capacitor should be rated for the output voltage and have a low equivalent series resistance (ESR) to minimize output ripple.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MD-40SV Overview

Use the download button to access the MD-40SV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MD-40, or try a keyword search, such as DIN Connectors

About Same Sky

CUI Devices is an electronic components manufacturer that specializes in audio components, interconnects, motion, relay, switch and thermal management solutions. The company designs and manufacturers components for use in a wide range of industries that include aerospace, industrial, medical, and telecommunications. CUI Devices is headquartered in Lake Oswego, Oregon.
