MD-60FC footprint, schematic symbol and 3D model by Same Sky

Symbol

click to zoom

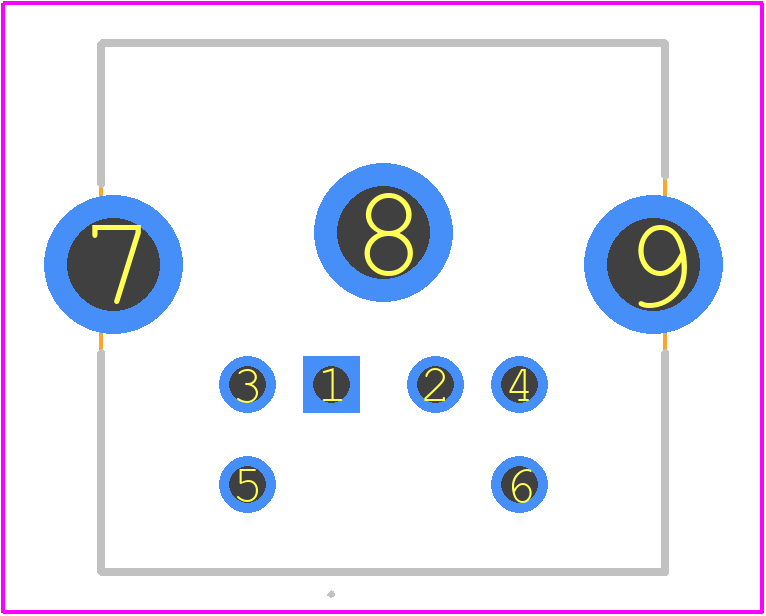

PCB Footprints

MD-60FC - Same Sky PCB footprint - Other - Other - MD-60FC-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MD-60FC
Part Number MD-60FC
Manufacturer Same Sky
Pin Count 9
Part Category Connector
Package Category Other
Footprint Name Other - MD-60FC-1
Released Date Aug 5, 2026
Last Modified Date Aug 5, 2026 10:16 AM UTC
Pinout / Pin List Click Here (Member Only)

MD-60FC Details

Manufacturer Part Number:
MD-60FC
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8536.69.40.20
Manufacturer:
Same Sky
YTEOL:
0
Board Mounting Option:
SOLDER HOLDING FLANGE
Body Breadth:
0.51 inch
Body Depth:
0.52 inch
Body Length:
0.56 inch
Body/Shell Style:
JACK
Connector Type:
MINI DIN CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Gender:
FEMALE
Contact Material:
NOT APPLICABLE
Contact Resistance:
30 mΩ
Contact Style:
RND PIN-SKT
Dielectric Withstanding Voltage:
250VAC V
Durability:
1000 Cycles
EMI Shielded:
YES
Insertion Force-Max:
44.1 N
Insulation Resistance:
50000000 Ω
Insulator Material:
POLYBUTYLENE TEREPHTHALATE
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number of Ports:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
Polarization Key:
POLARIZED HOUSING
Rated Current (Signal):
2 A
Reference Standard:
UL
Terminal Length:
0.14 inch
Termination Type:
SOLDER
Total Number of Contacts:
6

MD-60FC Frequently Asked Questions (FAQs)

A good PCB layout for the MD-60FC involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input and output traces. It's also recommended to use a common mode choke or ferrite bead to filter out high-frequency noise.
To ensure proper decoupling, place a 10uF to 22uF ceramic capacitor between the VIN and GND pins, and a 100nF to 1uF ceramic capacitor between the VOUT and GND pins. This will help filter out high-frequency noise and ensure stable operation.
The MD-60FC is rated for operation in ambient temperatures ranging from -40°C to +85°C. However, the device's performance and reliability may be affected at extreme temperatures, so it's recommended to operate within a range of 0°C to +70°C for optimal performance.
Yes, the MD-60FC is designed to withstand vibrations up to 10G peak acceleration. However, it's recommended to follow proper mounting and soldering techniques to ensure the device is securely attached to the PCB and can withstand the expected vibration levels.
To troubleshoot issues with the MD-60FC, start by checking the input voltage, output voltage, and current consumption. Verify that the device is properly soldered and mounted, and check for any signs of physical damage or overheating. If the issue persists, consult the datasheet and application notes or contact CUI Devices' technical support for further assistance.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

MD-60FC Overview

Use the download button to access the MD-60FC schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like MD-60, or try a keyword search, such as DIN Connectors
