MD-60SMK footprint, schematic symbol and 3D model by Same Sky

Symbol

click to zoom

PCB Footprints

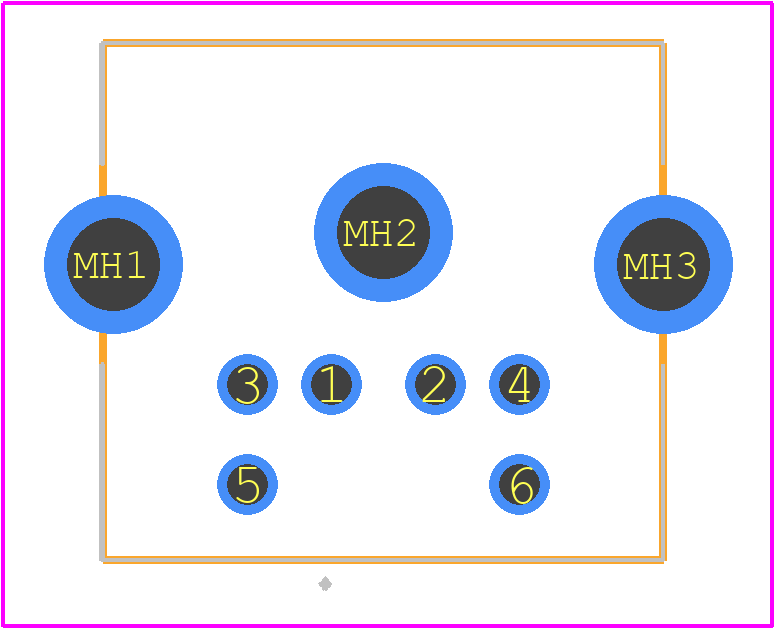

MD-60SMK - Same Sky PCB footprint - Other - Other - MD-60SMK-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MD-60SMK
Part Number MD-60SMK
Manufacturer Same Sky
Pin Count 9
Part Category Connector
Package Category Other
Footprint Name Other - MD-60SMK-3
Released Date Dec 23, 2019
Last Modified Date Jul 25, 2026 11:43 AM UTC
Pinout / Pin List Click Here (Member Only)

MD-60SMK Details

Manufacturer Part Number:
MD-60SMK
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8536.69.40.20
Manufacturer:
Same Sky
YTEOL:
0
Board Mounting Option:
SOLDER HOLDING FLANGE
Body Breadth:
0.504 inch
Body Depth:
0.508 inch
Body Length:
0.551 inch
Body/Shell Style:
JACK
Connector Type:
MINI DIN CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Gender:
FEMALE
Contact Material:
NOT APPLICABLE
Contact Resistance:
30 mΩ
Contact Style:
SQ PIN-SKT
Dielectric Withstanding Voltage:
250VAC V
Durability:
1000 Cycles
EMI Shielded:
YES
Insertion Force-Max:
44.1 N
Insulation Resistance:
50000000 Ω
Insulator Material:
POLYBUTYLENE TEREPHTHALATE
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number of Ports:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
Polarization Key:
POLARIZED HOUSING
Rated Current (Signal):
2 A
Reference Standard:
UL
Shell Finish:
TIN
Shell Material:
STEEL
Terminal Length:
0.138 inch
Termination Type:
SOLDER
Total Number of Contacts:
6

MD-60SMK Frequently Asked Questions (FAQs)

A good PCB layout for the MD-60SMK involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input and output traces. It's also recommended to use a common mode choke or ferrite bead to filter out high-frequency noise.
To ensure proper decoupling, place a 10uF to 22uF ceramic capacitor between the input pins and a 1uF to 10uF ceramic capacitor between the output pins, both as close to the module as possible. Additionally, use a 10nF to 100nF ceramic capacitor between the input and output pins to filter out high-frequency noise.
The MD-60SMK is rated for operation in ambient temperatures ranging from -40°C to 85°C. However, the module's performance and reliability may degrade if operated outside of the recommended temperature range of 0°C to 70°C.
While the MD-60SMK is designed to be rugged, it's still important to ensure the module is properly secured to the PCB and that the PCB is securely fastened to the chassis. Additionally, consider using a vibration-dampening material, such as a silicone adhesive, to further reduce the risk of damage.
To troubleshoot issues with the MD-60SMK, start by verifying the input voltage and current, then check the output voltage and current. Use an oscilloscope to inspect the input and output waveforms for signs of noise or distortion. If the issue persists, consult the datasheet and application notes or contact CUI Devices' technical support for further assistance.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

MD-60SMK Overview

Use the download button to access the MD-60SMK schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like MD-60, or try a keyword search, such as DIN Connectors
