- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MD-80SM
- Part Number MD-80SM
- Manufacturer Same Sky
- Pin Count 11
- Part Category Connector
- Package Category Other

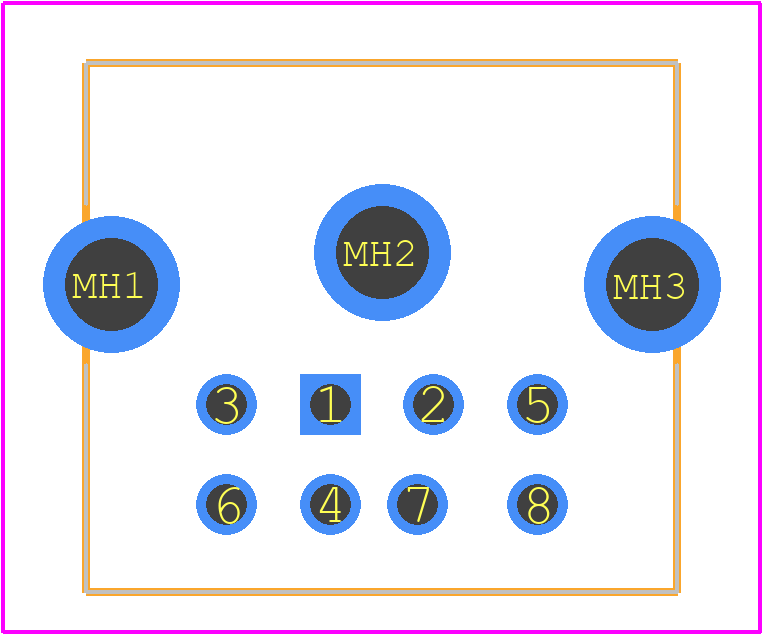

- Footprint Name Other - MD-80SM-2
- Released Date Oct 25, 2019
- Last Modified Date May 20, 2026 3:53 PM UTC
- Pinout / Pin List Click Here (Member Only)
MD-80SM Details
-
Manufacturer Part Number:
MD-80SM
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Transferred
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.20
-
Manufacturer:
Same Sky
-
YTEOL:
8
-
Body Breadth:
0.504 inch
-
Body Depth:
0.528 inch
-
Body Length:
0.551 inch
MD-80SM Frequently Asked Questions (FAQs)
-
CUI Devices recommends a 4-layer PCB with a solid ground plane and a separate power plane for the module. The input and output capacitors should be placed as close to the module as possible, and the PCB should be designed to minimize electromagnetic interference (EMI).
-
To ensure reliability in high-temperature environments, it is recommended to derate the module's output power according to the temperature derating curve provided in the datasheet. Additionally, ensure good airflow around the module and consider using a heat sink or thermal interface material to reduce the module's operating temperature.
-
The recommended input voltage range for the MD-80SM is 36-72VDC, although the module can operate with input voltages as low as 24VDC. However, operating the module outside of the recommended range may affect its performance and reliability.
-
To troubleshoot issues with the MD-80SM, first check the input voltage and ensure it is within the recommended range. Verify that the module is properly connected and that the output is not overloaded. Check the module's temperature and ensure it is within the recommended operating range. If the issue persists, contact CUI Devices' technical support for further assistance.
-
Yes, the MD-80SM can be used in redundant or parallel configurations to increase the overall power output or to provide redundancy in critical applications. However, it is recommended to consult with CUI Devices' technical support to ensure that the modules are properly configured and synchronized.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
MD-80SM Overview
Use the download button to access the MD-80SM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MD-80,
or try a keyword search, such as DIN Connectors
About Same Sky
CUI Devices is an electronic components manufacturer that specializes in audio components, interconnects, motion, relay, switch and thermal management solutions. The company designs and manufacturers components for use in a wide range of industries that include aerospace, industrial, medical, and telecommunications.
CUI Devices is headquartered in Lake Oswego, Oregon.
