- Part Number MD-80SMK
- Manufacturer Same Sky
- Pin Count 11
- Part Category Connector
- Package Category Other

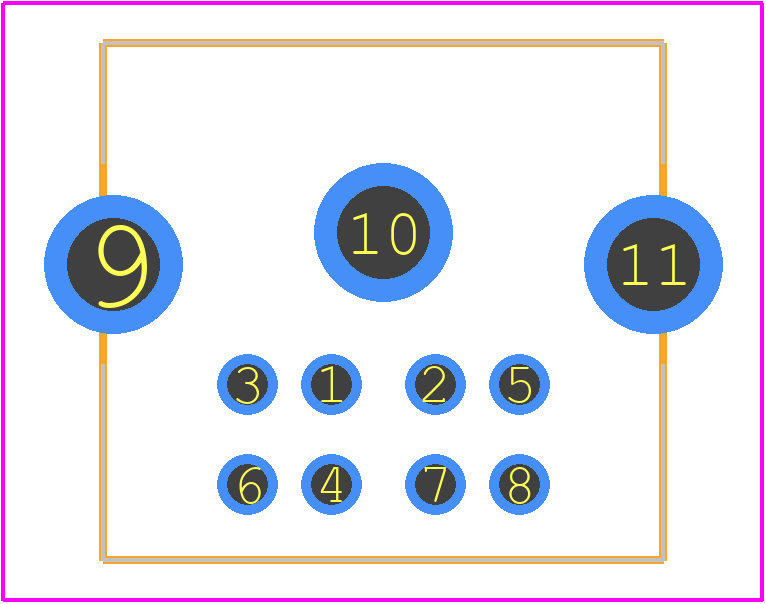

- Footprint Name Other - MD-80SMK
- Released Date Aug 16, 2018
- Last Modified Date Jun 11, 2026 1:19 PM UTC
- Pinout / Pin List Click Here (Member Only)
MD-80SMK Details
-
Manufacturer Part Number:
MD-80SMK
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.20
-
Manufacturer:
Same Sky
-
YTEOL:
0
-
Board Mounting Option:
SOLDER HOLDING FLANGE
-
Body Breadth:
0.504 inch
-
Body Depth:
0.508 inch
-
Body Length:
0.551 inch
MD-80SMK Frequently Asked Questions (FAQs)
-
CUI Devices recommends a 4-layer PCB with a solid ground plane and a separate power plane for the module. The input and output capacitors should be placed as close to the module as possible, and the PCB should be designed to minimize electromagnetic interference (EMI).
-
To ensure reliability in high-temperature environments, it is recommended to derate the module's output power according to the temperature derating curve provided in the datasheet. Additionally, ensure good airflow around the module and consider using a heat sink or thermal interface material to reduce the module's operating temperature.
-
The recommended input voltage range for the MD-80SMK is 36-72VDC, although the module can operate with input voltages as low as 24VDC. However, operating the module outside of the recommended range may affect its performance and reliability.
-
To troubleshoot issues with the MD-80SMK, start by checking the input voltage and current, as well as the output voltage and current. Verify that the module is properly connected and that the input and output capacitors are properly installed. If the issue persists, contact CUI Devices' technical support for further assistance.
-
Yes, the MD-80SMK is compatible with lead-free soldering processes. The module's components are RoHS-compliant and can withstand the higher temperatures associated with lead-free soldering.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
MD-80SMK Overview
Use the download button to access the MD-80SMK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MD-80,
or try a keyword search, such as DIN Connectors
About Same Sky
CUI Devices is an electronic components manufacturer that specializes in audio components, interconnects, motion, relay, switch and thermal management solutions. The company designs and manufacturers components for use in a wide range of industries that include aerospace, industrial, medical, and telecommunications.
CUI Devices is headquartered in Lake Oswego, Oregon.
