MD1821K6-G - Microchip

Description: Gate Drivers HI SPD 4CH MSFET DRV w/INVERTING OUT

Download MD1821K6-G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

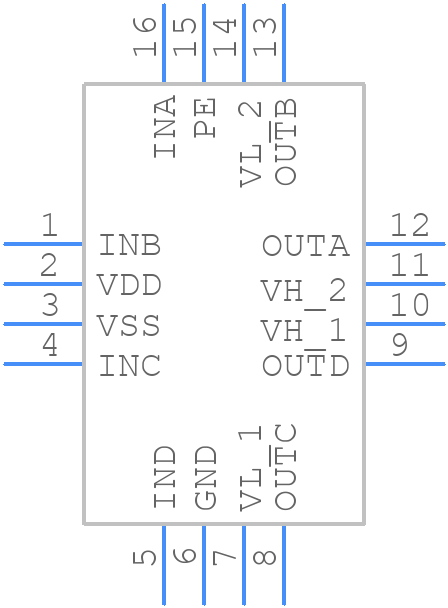

MD1821K6-G - Microchip - PCB symbol
click to zoom
PCB Footprints
MD1821K6-G - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN16-2021
click to zoom
3D Models
MD1821K6-G - Microchip - 3D model - Quad Flat No-Lead - QFN16-2021
click to zoom

MD1821K6-G Details

  • Manufacturer Part Number:

    MD1821K6-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    VQFN-16

  • Country Of Origin:

    Mainland China, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    NAND GATE BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Peak Current Limit-Nom:

    2 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    11.5 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    10 V

  • Supply Voltage1-Max:

    11.5 V

  • Supply Voltage1-Min:

    4.75 V

  • Supply Voltage1-Nom:

    10 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Turn-off Time:

    0.0065 µs

  • Turn-on Time:

    0.0065 µs

  • Width:

    3 mm

MD1821K6-G Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the MD1821K6-G datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and keeping sensitive nodes away from noise sources.
  • The MD1821K6-G is rated for operation up to 125°C. To ensure reliable operation in high-temperature environments, ensure proper thermal management, such as using a heat sink or thermal interface material, and follow the recommended operating conditions.
  • The MD1821K6-G is designed to work with a specific voltage regulator or power supply. Using a different one may affect the device's performance, stability, or even damage it. Ensure the replacement voltage regulator or power supply meets the recommended specifications and operating conditions.
  • Start by verifying the power supply and voltage regulator are functioning correctly. Check the device's clock and reset signals, and ensure the correct configuration and programming. If issues persist, consult the datasheet, application notes, or contact Microchip support for further assistance.
  • The MD1821K6-G is susceptible to EMI and RFI. To minimize the risk of interference, use proper shielding, grounding, and filtering techniques. Ensure the device is placed in a shielded enclosure, and use EMI-resistant components and cables.
