3 X 3 MM, 1 MM HEIGHT, 0.50 MM PITCH, GREEN, PLASTIC, MO-220VEED-4, QFN-16
Pin Count:
16
Manufacturer Package Code:
VQFN-16
Country Of Origin:
Mainland China, Thailand
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Factory Lead Time:
8 Weeks
Manufacturer:
Microchip Technology Inc
YTEOL:
13
High Side Driver:
YES
Input Characteristics:
STANDARD
Interface IC Type:
NAND GATE BASED MOSFET DRIVER
JESD-30 Code:
S-PQCC-N16
JESD-609 Code:
e3
Length:
3 mm
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-20 °C
Output Peak Current Limit-Nom:
2 A
Output Polarity:
COMPLEMENTARY
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVQCCN
Package Equivalence Code:
LCC16,.12SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Qualification Status:
Not Qualified
Screening Level:
TS 16949
Seated Height-Max:
1 mm
Supply Voltage-Max:
11.5 V
Supply Voltage-Min:
4.75 V
Supply Voltage-Nom:
10 V
Supply Voltage1-Max:
11.5 V
Supply Voltage1-Min:
4.75 V
Supply Voltage1-Nom:
10 V
Surface Mount:
YES
Temperature Grade:
OTHER
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Turn-off Time:
0.0065 µs
Turn-on Time:
0.0065 µs
Width:
3 mm
MD1822K6-G Frequently Asked Questions (FAQs)
For optimal thermal performance, it is recommended to use a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer, and to place thermal vias under the device to dissipate heat efficiently.
To ensure reliable operation across the full temperature range, it is essential to follow the recommended operating conditions, including voltage, current, and power dissipation. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to maintain a safe junction temperature.
The MD1822K6-G has built-in ESD protection diodes on all pins, which provide a high level of protection against electrostatic discharge. To prevent latch-up, it is recommended to follow proper PCB design and layout guidelines, including using a solid ground plane and minimizing signal trace lengths.
While the MD1822K6-G is a high-quality device, it is essential to consult with Microchip Technology Inc's sales team or a qualified representative to determine the device's suitability for high-reliability or aerospace applications, as additional testing and qualification may be required.
For optimal soldering and rework results, it is recommended to follow the guidelines outlined in Microchip Technology Inc's soldering and rework application note, which provides detailed information on temperature profiles, soldering times, and rework techniques.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MD1822K6-G Overview

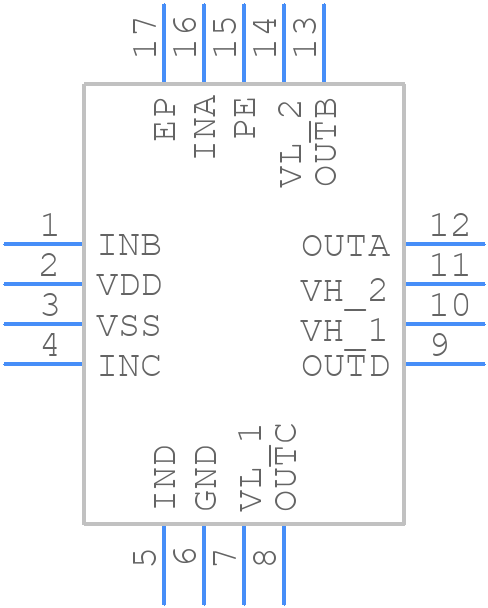

Use the download button to access the MD1822K6-G schematic symbol, PCB footprint, and 3D model.
