MD2134K7-G - Microchip

Description: RF Front End HI-SPEED ULTRASOUND BEAMFORMING DRIVER

Download MD2134K7-G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

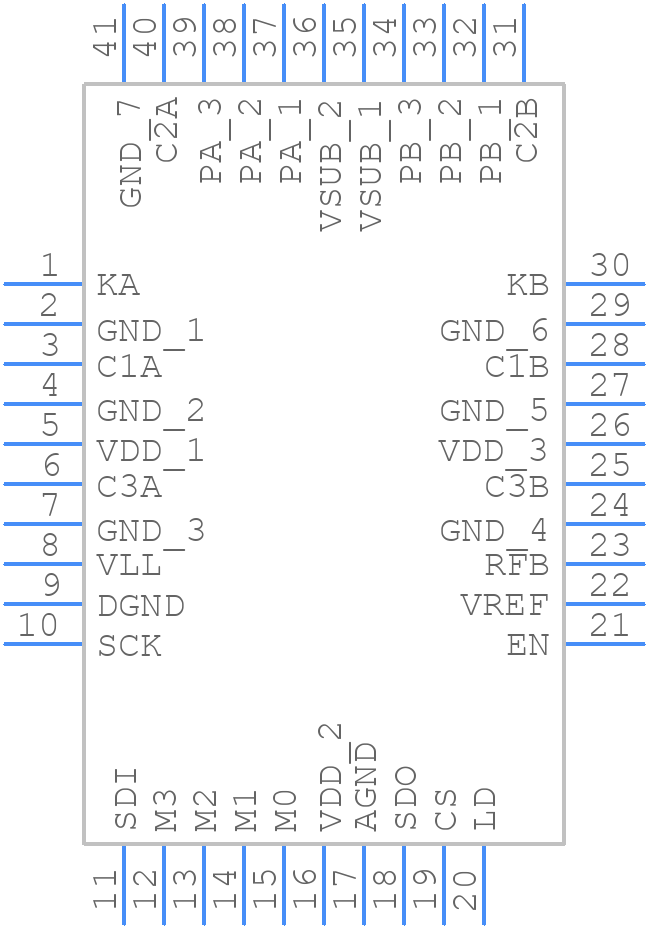

MD2134K7-G - Microchip - PCB symbol
click to zoom
PCB Footprints
MD2134K7-G - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 5.00x5.00mm body, 0.80mm height (max), 0.40mm pitch
click to zoom
3D Models
MD2134K7-G - Microchip - 3D model - Quad Flat No-Lead - 5.00x5.00mm body, 0.80mm height (max), 0.40mm pitch
click to zoom

MD2134K7-G Details

  • Manufacturer Part Number:

    MD2134K7-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    5 X 5 MM, 0.80 MM HEIGHT, 0.40 MM PITCH, GREEN, MO-220WHHE-1, QFN-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    WQFN-40

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.20SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    5.25 V

  • Supply Voltage1-Min:

    4.75 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

MD2134K7-G Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise and coupling.
  • Use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) as close as possible to the VCC pin. Add additional decoupling capacitors (e.g., 100nF) near the device's power pins. Ensure the power supply is stable and within the recommended voltage range.
  • The MD2134K7-G is rated for operation from -40°C to +125°C. However, it's essential to consider the specific application's thermal requirements and ensure proper heat dissipation to prevent overheating.
  • Check the power supply voltage, ensure proper decoupling, and verify the input and output connections. Use an oscilloscope to monitor the device's signals and look for signs of oscillation or noise. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • The MD2134K7-G is a commercial-grade device, and its use in high-reliability or safety-critical applications may require additional testing, validation, and certification. Consult with Microchip Technology Inc. or a qualified reliability engineer to determine the device's suitability for such applications.
