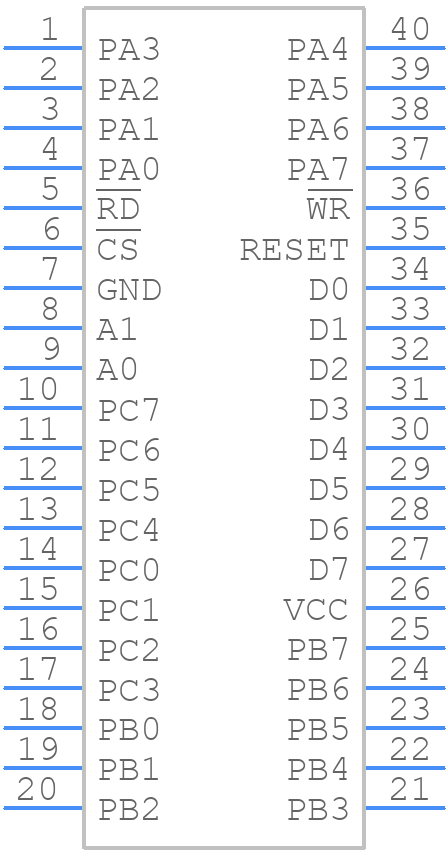

Symbol

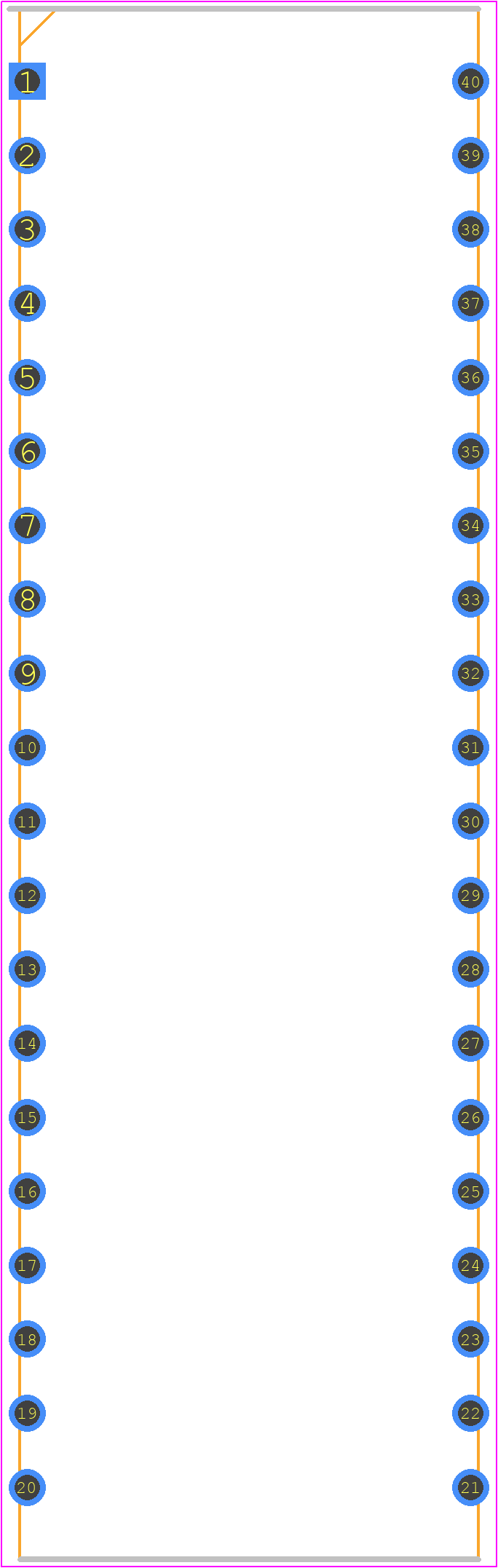

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MD82C55A/BZ
- Part Number MD82C55A/BZ
- Manufacturer Renesas Electronics
- Pin Count 40
- Part Category Integrated Circuit
- Package Category Ceramic Dual-In-Line Packages
- Footprint Name Ceramic Dual-In-Line Packages - F40.6 MIL-STD-1835 GDIP1-T40 (D-5, CONFIGURATION A)
- Released Date Mar 20, 2021
- Last Modified Date Oct 24, 2023 7:30 PM UTC
- Pinout / Pin List Click Here (Member Only)
MD82C55A/BZ Details
-
Manufacturer Part Number:
MD82C55A/BZ
-
Manufacturer:
Renesas Electronics Corporation
Trust Checks
Community Provided
System Verified
Community Approved
MD82C55A/BZ Overview
Use the download button to access the MD82C55A/BZ schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MD82C,
or try a keyword search, such as Parallel IO Ports
