- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MDB-24H+
- Part Number MDB-24H+
- Manufacturer Mini-Circuits
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - DG1847_2020
- Released Date Apr 16, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MDB-24H+ Details
-
Manufacturer Part Number:
MDB-24H+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
YTEOL:
7
-
Additional Feature:
HIGH ISOLATION, TR, 7 INCH: 1000
-
Construction:
COMPONENT
-
Conversion Loss-Max:
11.7 dB
-
Input Power-Max (CW):
21 dBm
-
JESD-609 Code:
e2
MDB-24H+ Frequently Asked Questions (FAQs)
-
Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and a via-stitched ground plane around the device. The device should be placed near the edge of the board to minimize signal reflections. A detailed application note is available from Mini-Circuits.
-
The MDB-24H+ requires a dual supply voltage of +5V and -5V. Ensure that the voltage rails are well-regulated and decoupled with capacitors. The device also requires a bias current of 10mA, which can be provided using a resistor and voltage reference.
-
The MDB-24H+ can handle input powers up to +20dBm. However, it's recommended to operate the device at input powers below +15dBm to ensure optimal performance and prevent damage.
-
Common issues can be caused by improper PCB layout, inadequate decoupling, or incorrect biasing. Check the PCB layout and ensure that the device is properly decoupled and biased. Use a spectrum analyzer to identify any oscillations or spurious signals. Consult the application note and contact Mini-Circuits support for further assistance.
-
The MDB-24H+ is specified to operate from -40°C to +85°C. However, the device can be operated at temperatures up to +100°C with reduced performance and reliability.
Trust Checks
Community Provided
System Verified
Community Approved
MDB-24H+ Overview

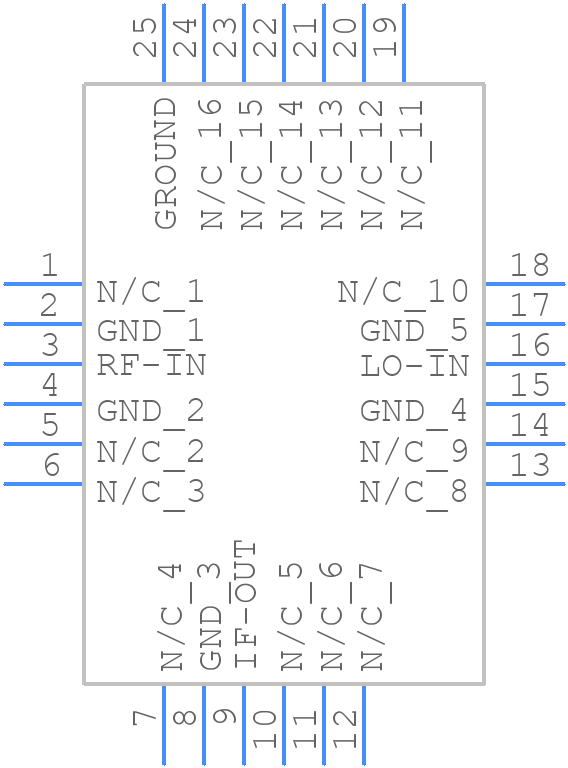

Use the download button to access the MDB-24H+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MDB-2,
or try a keyword search, such as RF/Microwave Mixers
