MDF51SY-2P-13DSA(21) - Hirose

Description: Power to the Board 2P STRT HDR 13MM T/H HI-VOLT BRD-CBL CON

Download MDF51SY-2P-13DSA(21) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

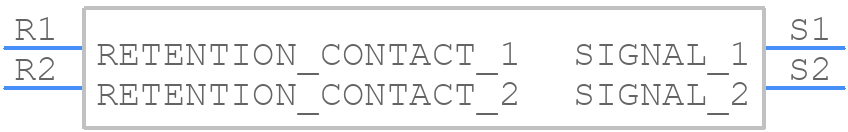

MDF51SY-2P-13DSA(21) - Hirose - PCB symbol
click to zoom
PCB Footprints

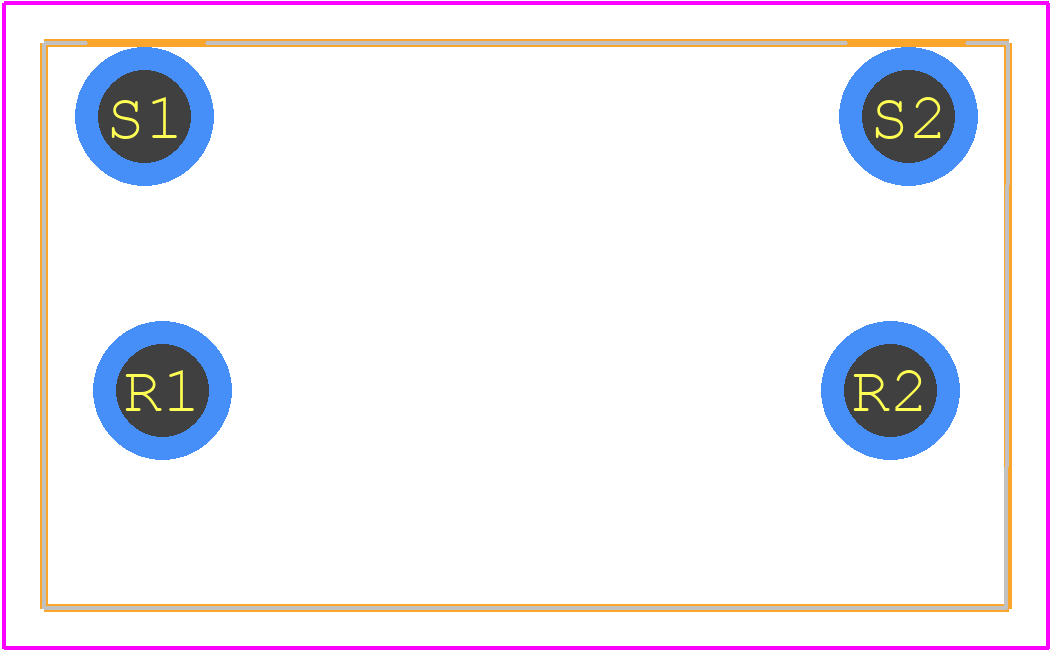

MDF51SY-2P-13DSA(21) - Hirose PCB footprint - Other - Other - MDF51SY-2P-13DSA(21)-2
click to zoom
3D Models
MDF51SY-2P-13DSA(21) - Hirose - 3D model - Other - MDF51SY-2P-13DSA(21)-2
click to zoom

MDF51SY-2P-13DSA(21) Details

  • Manufacturer Part Number:

    MDF51SY-2P-13DSA(21)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Number Of Connectors:

    ONE

  • Option:

    GENERAL PURPOSE

MDF51SY-2P-13DSA(21) Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m (0.37 lbf·in to 1.06 lbf·in).
  • Yes, the connector is designed to withstand vibrations up to 10 Hz to 2000 Hz, 10 G acceleration, and 3 mm amplitude.
  • The operating temperature range for the MDF51SY-2P-13DSA(21) connector is -40°C to 105°C (-40°F to 221°F).
  • Yes, the connector is compatible with lead-free soldering, with a recommended soldering temperature of 260°C (500°F) for 10 seconds or less.
  • The mating cycle life of the MDF51SY-2P-13DSA(21) connector is 500 cycles minimum.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MDF51SY-2P-13DSA(21) Overview

Use the download button to access the MDF51SY-2P-13DSA(21) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MDF51, or try a keyword search, such as Headers and Edge Type Connectors
