The recommended torque is 0.5 N·m to 1.5 N·m (5 gf·cm to 15 gf·cm) according to Hirose's application notes.
Yes, the connector is designed to withstand vibrations up to 10 G (98 m/s²) in the frequency range of 10 Hz to 2 kHz, making it suitable for high-vibration applications.
The connector is rated for operating temperatures between -40°C to 105°C and can withstand humidity up to 90% RH. However, it's essential to follow Hirose's guidelines for environmental considerations and potential derating.
The connector is rated for a minimum of 500 mating cycles, ensuring reliable connections even in applications with frequent plug-in and plug-out operations.
Yes, the connector is designed for automated assembly and is compatible with reflow soldering processes. However, it's crucial to follow Hirose's recommended assembly and soldering guidelines to ensure reliable connections.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MDF6-10DP-3.5DS(05) Overview

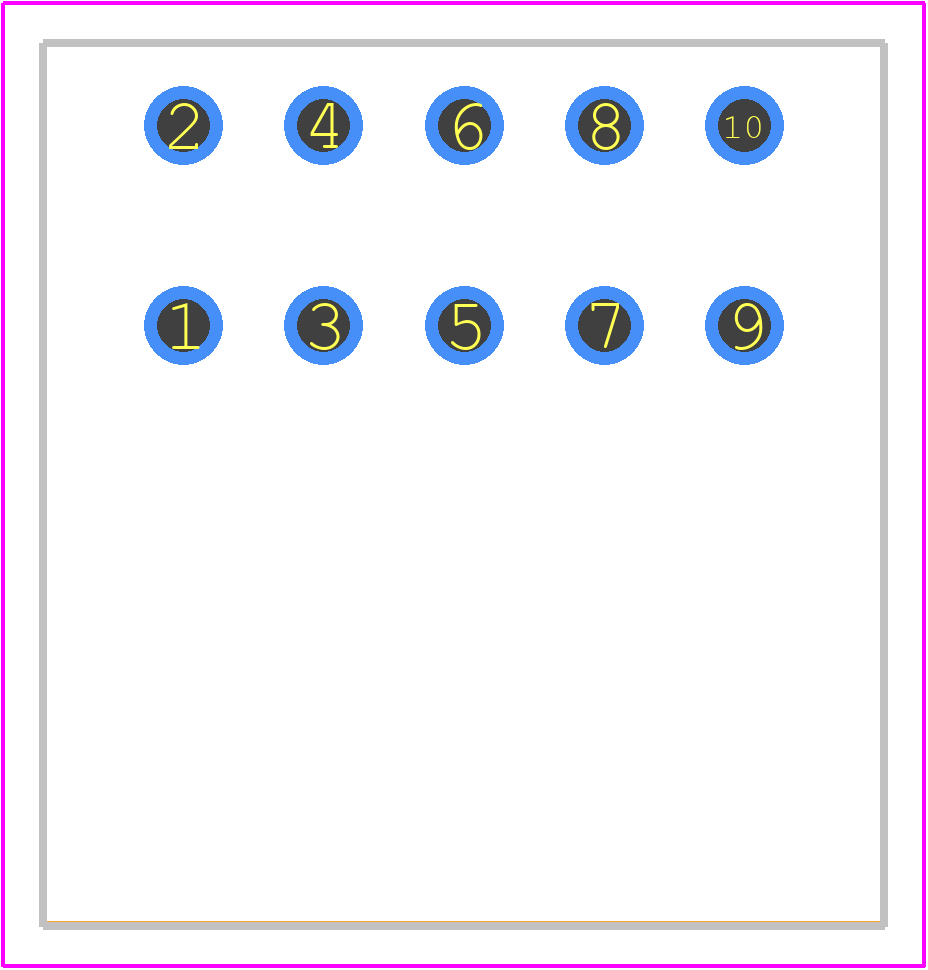

Use the download button to access the MDF6-10DP-3.5DS(05) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MDF6-,
or try a keyword search, such as Headers and Edge Type Connectors
