MDP160310K0GD04 - Vishay

Description: Res Thick Film NET 10K Ohm 2% 1.92W ±100ppm/C ISOL Molded 16-Pin DIP Pin Thru-Hole Tube

Download MDP160310K0GD04 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MDP160310K0GD04 - Vishay - PCB symbol
click to zoom
PCB Footprints

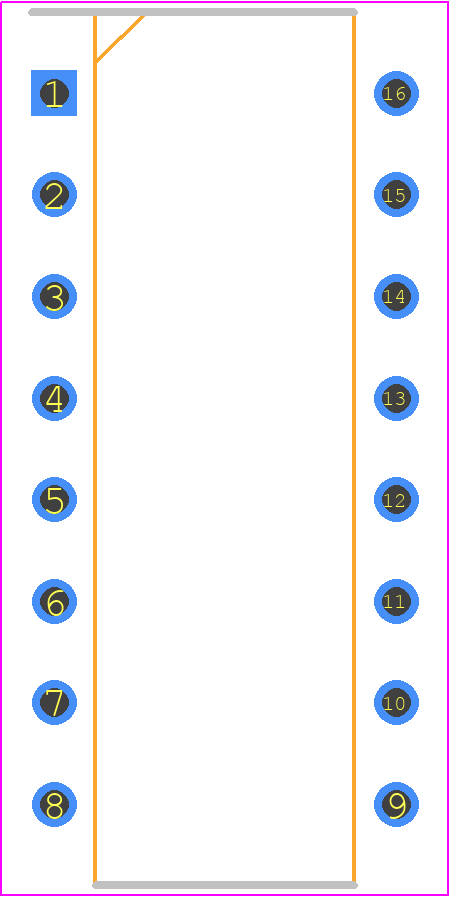

MDP160310K0GD04 - Vishay PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 16-Lead DIP
click to zoom
3D Models
MDP160310K0GD04 - Vishay - 3D model - Dual-In-Line Packages - 16-Lead DIP
click to zoom

MDP160310K0GD04 Details

  • Manufacturer Part Number:

    MDP160310K0GD04

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP

  • Reach Compliance Code:

    Not Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.60

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    5.36

  • Construction:

    Molded Case

  • Element Power Dissipation:

    0.25 W

  • First Element Resistance:

    10000 Ω

  • JESD-609 Code:

    e0

  • Lead Length:

    3.3 mm

  • Lead Spacing:

    2.54 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Network Type:

    ISOLATED

  • Number of Elements:

    1

  • Number of Functions:

    8

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    3.05 mm

  • Package Length:

    21.59 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    DIP

  • Package Width:

    6.35 mm

  • Packing Method:

    TUBE

  • Rated Power Dissipation (P):

    1.92 W

  • Rated Temperature:

    70 °C

  • Resistance:

    10000 Ω

  • Resistor Type:

    ARRAY/NETWORK RESISTOR

  • Size Code:

    8525

  • Surface Mount:

    NO

  • Technology:

    METAL GLAZE/THICK FILM

  • Temperature Coefficient:

    100 ppm/°C

  • Temperature Coefficient Tracking:

    50 ppm/°C

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Shape:

    FLAT

  • Tolerance:

    2%

MDP160310K0GD04 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the MDP160310K0GD04 can be found in the Vishay Intertechnologies' recommended land pattern document or by contacting their technical support team.
  • Proper thermal management of the MDP160310K0GD04 involves ensuring good thermal conductivity between the device and the PCB, using thermal vias, and providing adequate airflow. Consult the datasheet and application notes for more information.
  • The maximum operating temperature range for the MDP160310K0GD04 is -55°C to +150°C, as specified in the datasheet. However, it's essential to consider the derating curves and thermal management to ensure reliable operation.
  • The MDP160310K0GD04 is a commercial-grade component, and its use in high-reliability or aerospace applications may require additional testing, screening, and qualification. Consult with Vishay Intertechnologies' technical support team for more information.
  • Follow the recommended soldering profile and assembly guidelines provided in the datasheet and application notes. Ensure proper cleaning and handling of the component to prevent damage during assembly.
