MDS15C-05 - Mean Well

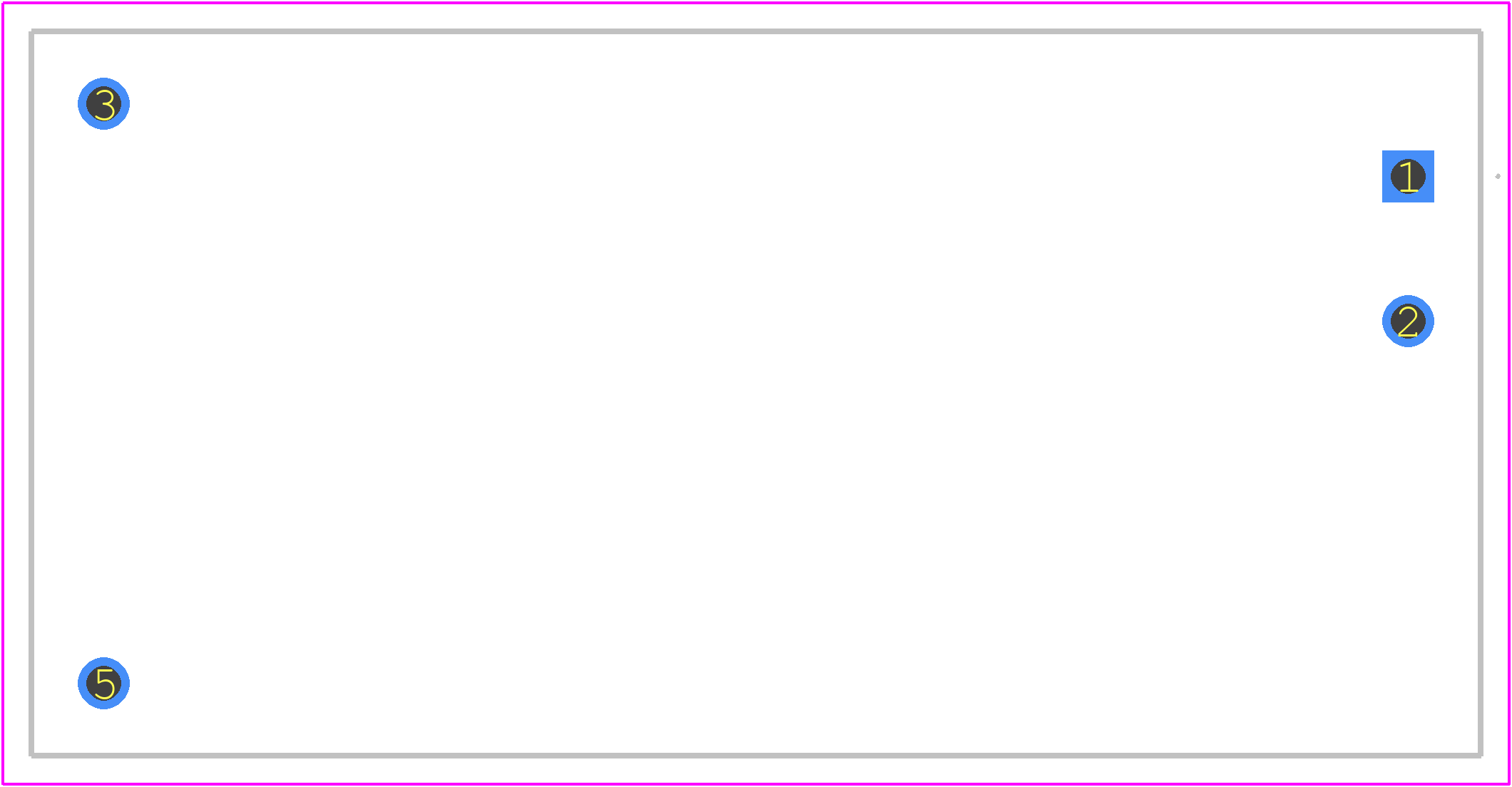

MDS15C-05 Details

• Manufacturer Part Number:

  MDS15C-05

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  DIP-5

• ECCN Code:

  EAR99

• Manufacturer:

  Mean Well

• YTEOL:

  5

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  BS, EAC, EN, IEC

• Efficiency (Main Output):

  86%

• Input Voltage-Max:

  75 V

• Input Voltage-Min:

  36 V

• Input Voltage-Nom:

  48 V

• JESD-30 Code:

  R-PDIP-P5

• Length:

  50.8 mm

• Line Regulation-Max:

  0.5%

• Load Regulation-Max:

  0.5%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  5

• Operating Temperature-Max:

  90 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  3 A

• Output Voltage-Max:

  5.05 V

• Output Voltage-Min:

  4.95 V

• Output Voltage-Nom:

  5 V

• Package Body Material:

  PLASTIC

• Package Code:

  DIP

• Package Equivalence Code:

  DIP4/5,1.8(UNSPEC)

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Peak Reflow Temperature (Cel):

  260

• Protections:

  OVER LOAD, OVER VOLTAGE, SHORT CIRCUIT

• Ripple Voltage (Main Out):

  0.02121 Vrms

• Screening Level:

  IEC 60601-1, Two MOOP

• Seated Height-Max:

  12.5 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Terminal Form:

  PIN/PEG

• Terminal Position:

  DUAL

• Total Power Output-Max:

  15 W

• Trim/Adjustable Output:

  NO

• Width:

  25.4 mm
