MDS20A-24 - Mean Well

MDS20A-24 Details

• Manufacturer Part Number:

  MDS20A-24

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  DIP-5/4

• ECCN Code:

  EAR99

• Manufacturer:

  Mean Well

• YTEOL:

  5

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  CE, EAC, EN, UKCA

• Efficiency (Main Output):

  88%

• Input Voltage-Max:

  18 V

• Input Voltage-Min:

  9 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-PDIP-P4

• Length:

  50.8 mm

• Line Regulation-Max:

  0.5%

• Load Regulation-Max:

  0.5%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  4

• Operating Temperature-Max:

  90 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.833 A

• Output Voltage-Max:

  24.24 V

• Output Voltage-Min:

  23.76 V

• Output Voltage-Nom:

  24 V

• Package Body Material:

  PLASTIC/EPOXY

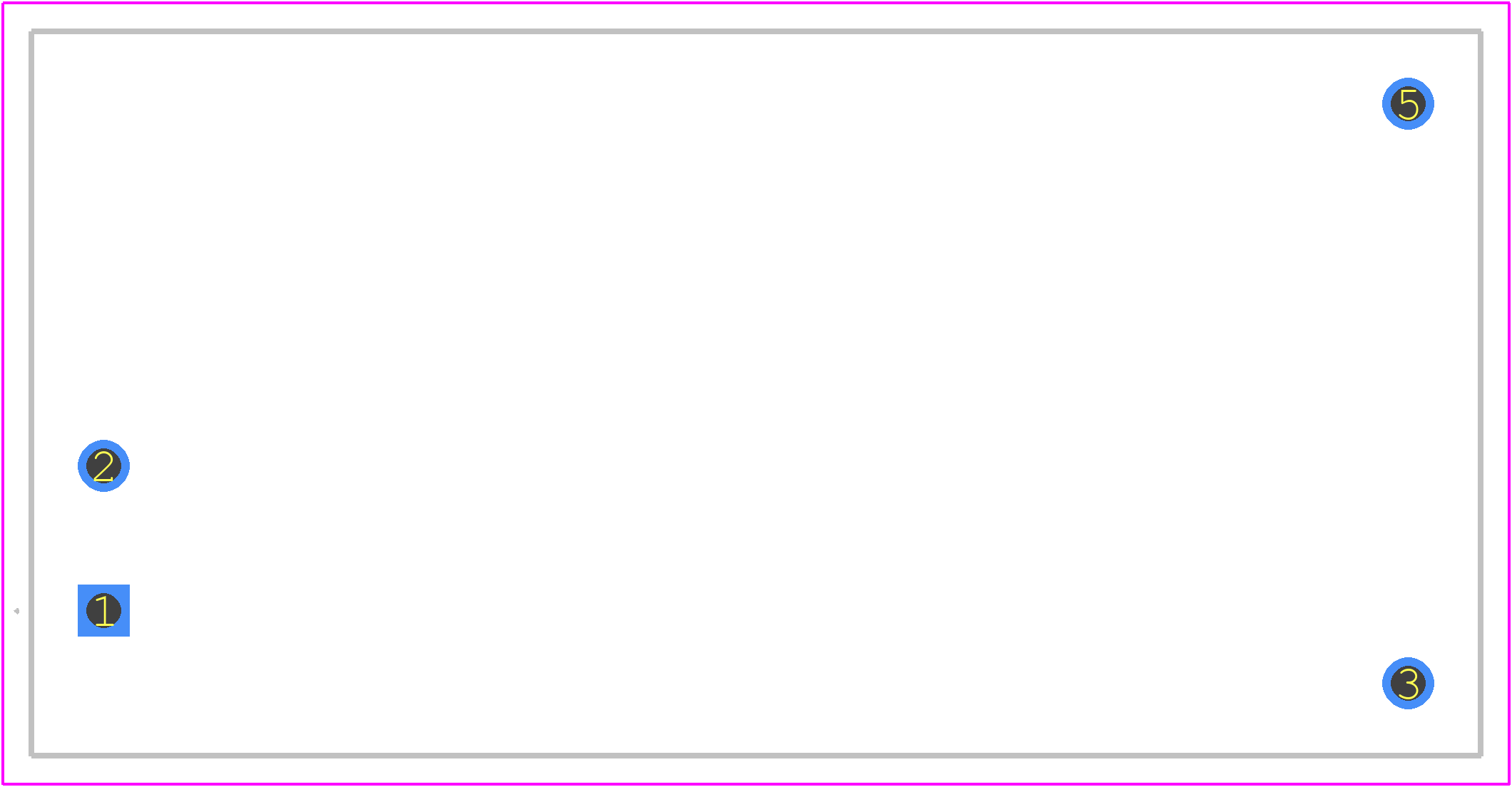

• Package Code:

  DIP

• Package Equivalence Code:

  DIP4/5,1.8,400/200

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Peak Reflow Temperature (Cel):

  260

• Protections:

  OVER LOAD, SHORT CIRCUIT

• Ripple Voltage (Main Out):

  0.02121 Vrms

• Screening Level:

  IEC 60601-1, Two MOOP

• Seated Height-Max:

  12.5 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Terminal Form:

  PIN/PEG

• Terminal Position:

  DUAL

• Total Power Output-Max:

  20 W

• Trim/Adjustable Output:

  NO

• Width:

  25.4 mm
