MDSM-25PE-Z10-VR17 - ITT CANNON

Description: ITT CANNON - MDSM-25PE-Z10-VR17 - CONNECTOR, 90 PCB, PLUG, 25 WAY

Download MDSM-25PE-Z10-VR17 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

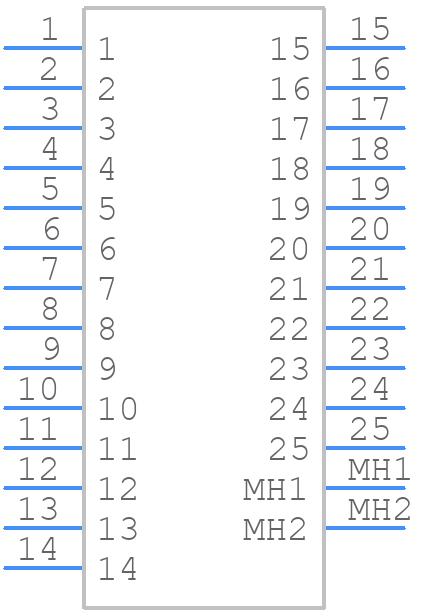

MDSM-25PE-Z10-VR17 - ITT CANNON - PCB symbol
click to zoom
PCB Footprints

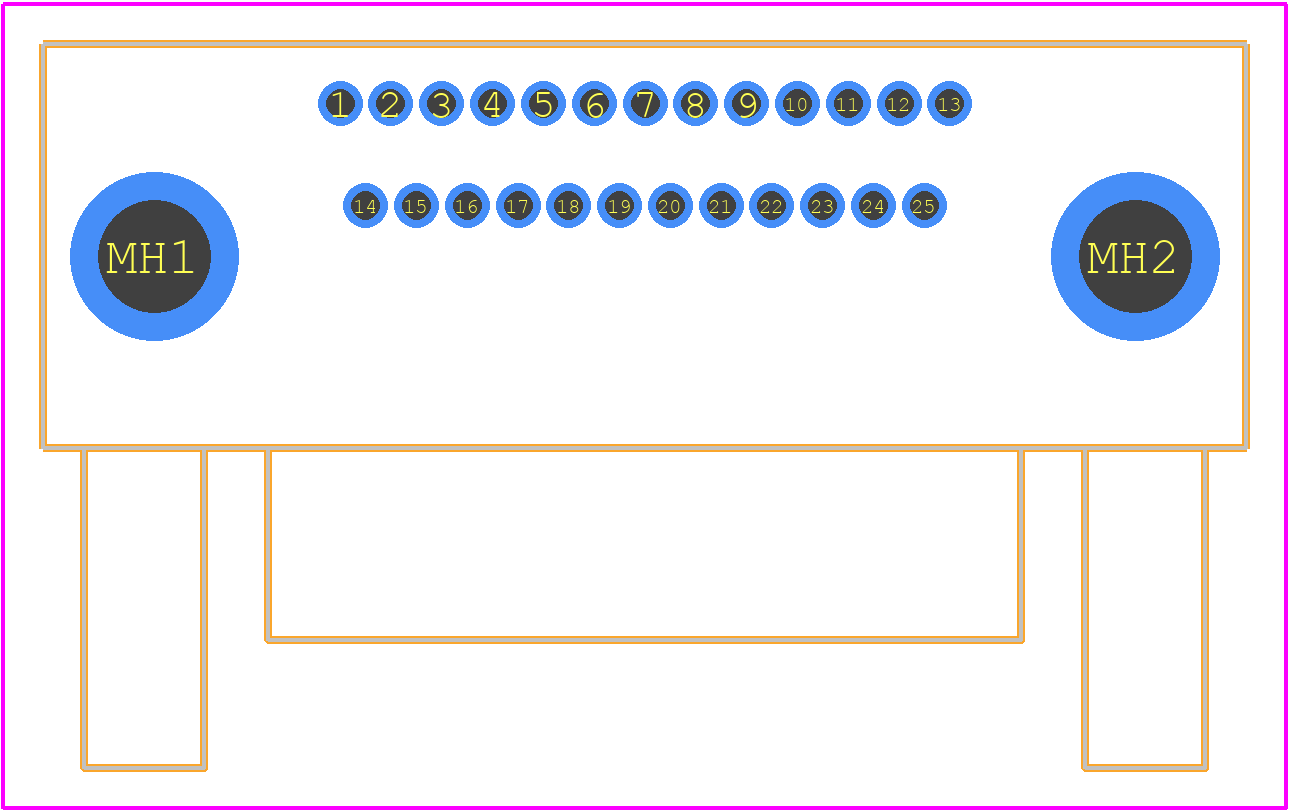

MDSM-25PE-Z10-VR17 - ITT CANNON PCB footprint - Other - Other - MDSM-25PE-Z10-VR17-3
click to zoom
3D Models
MDSM-25PE-Z10-VR17 - ITT CANNON - 3D model - Other - MDSM-25PE-Z10-VR17-3
click to zoom

MDSM-25PE-Z10-VR17 Details

  • Manufacturer Part Number:

    MDSM-25PE-Z10-VR17

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    33 Weeks

  • Manufacturer:

    ITT Interconnect Solutions

  • YTEOL:

    7.45

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    GOLD FLASH (30) OVER PALLADIUM NICKEL

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    PLASTIC

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Shell Finish:

    NICKEL

  • Shell Material:

    STEEL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    25

  • UL Flammability Code:

    94V-0

MDSM-25PE-Z10-VR17 Frequently Asked Questions (FAQs)

  • The operating temperature range is -55°C to 125°C, according to the datasheet.
  • Yes, the connector is designed to withstand high-vibration environments, making it suitable for aerospace, defense, and other demanding applications.
  • The mating cycle life is 500 cycles, as specified in the datasheet.
  • Yes, the connector is designed to operate in harsh environments and has a salt spray resistance of 48 hours, according to the datasheet.
  • The current rating is 2.5 amps per contact, as specified in the datasheet.
