MDSM-9PE-Z10-VR25 - ITT CANNON

MDSM-9PE-Z10-VR25 Details

• Manufacturer Part Number:

  MDSM-9PE-Z10-VR25

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Factory Lead Time:

  32 Weeks

• Manufacturer:

  ITT Interconnect Solutions

• YTEOL:

  7.45

• Additional Feature:

  ROHS COMPLIANT

• Body Breadth:

  0.315 inch

• Body Depth:

  0.398 inch

• Body Length:

  0.783 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  TELECOM AND DATACOM CONNECTOR

• Contact Finish Mating:

  GOLD FLASH OVER NICKEL PALLADIUM (30)

• Contact Gender:

  MALE

• Contact Material:

  COPPER ALLOY

• Contact Pattern:

  STAGGERED

• Contact Resistance:

  20 mΩ

• Contact Style:

  RND PIN-SKT

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  350VAC V

• Empty Shell:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulation Resistance:

  5000000000 Ω

• Insulator Material:

  PLASTIC

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.05 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  #2-56

• Mounting Option 2:

  THREADED

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

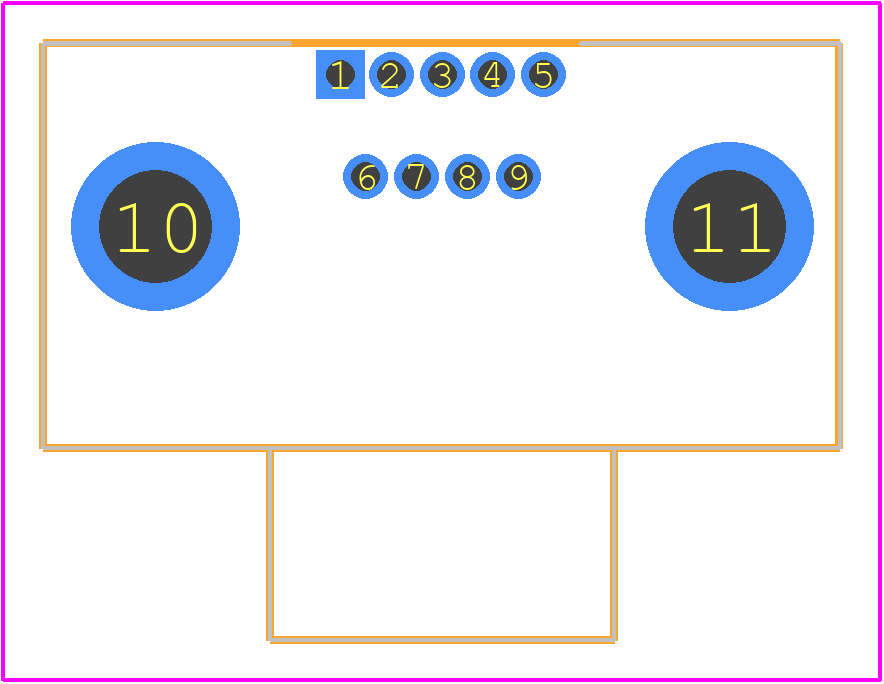

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.54 mm

• Plating Thickness:

  FLASH inch

• Rated Current (Signal):

  1 A

• Reference Standard:

  UL

• Shell Finish:

  NICKEL

• Shell Material:

  STEEL

• Terminal Length:

  0.106 inch

• Terminal Pitch:

  1.27 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  9

• UL Flammability Code:

  94V-0
