MEA1608L101RTA0G - TDK

Description: 3-terminal Filters, Cut-Off frequency=100MHz, L x W x T :

Download MEA1608L101RTA0G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

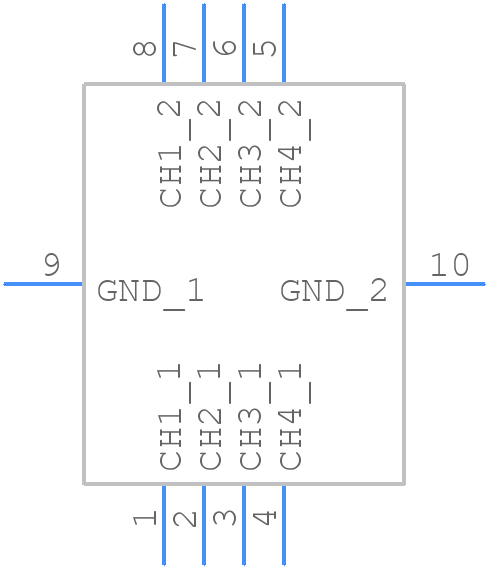

MEA1608L101RTA0G - TDK - PCB symbol
click to zoom
PCB Footprints
MEA1608L101RTA0G - TDK PCB footprint - Other - Other - MEA1608
click to zoom
3D Models
MEA1608L101RTA0G - TDK - 3D model - Other - MEA1608
click to zoom

MEA1608L101RTA0G Details

  • Manufacturer Part Number:

    MEA1608L101RTA0G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    7.39

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.5 mm

  • Length:

    1.6 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    4

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 7 INCH

  • Rated Current:

    0.1 A

  • Rated Voltage:

    6.3 V

  • Width:

    0.8 mm

MEA1608L101RTA0G Frequently Asked Questions (FAQs)

  • The recommended land pattern for the MEA1608L101RTA0G can be found in the TDK Corporation's application note or in the IPC-7351 standard. It is essential to follow the recommended land pattern to ensure reliable soldering and to prevent defects.
  • To prevent damage, it is recommended to handle the MEA1608L101RTA0G by the edges, avoid touching the component's terminals, and use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage.
  • The maximum operating temperature range for the MEA1608L101RTA0G is -55°C to +125°C, as specified in the datasheet. Operating the component outside this range may affect its performance and reliability.
  • The MEA1608L101RTA0G is designed to withstand moderate vibration levels. However, it is recommended to consult with TDK Corporation or a qualified engineer to determine the suitability of the component for high-vibration applications.
  • To maintain the shelf life of the MEA1608L101RTA0G, it is recommended to store the components in their original packaging, in a dry and cool environment, away from direct sunlight and moisture.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MEA1608L101RTA0G Overview

Use the download button to access the MEA1608L101RTA0G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MEA16, or try a keyword search, such as Data Line Filters
