MEA1608LC080T001 footprint, schematic symbol and 3D model by TDK

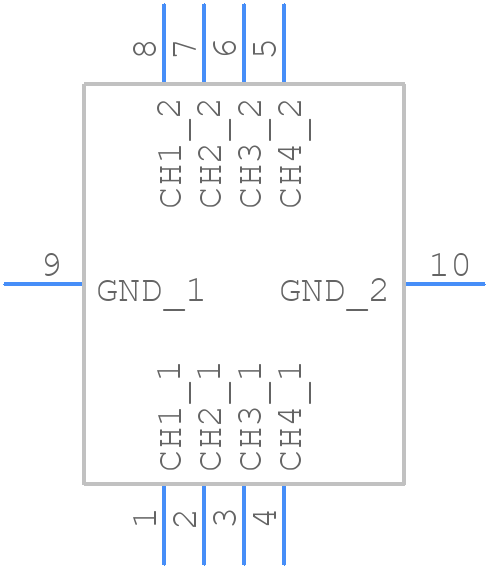

Symbol

click to zoom

PCB Footprints

MEA1608LC080T001 - TDK PCB footprint - Other - Other - MEA1608_2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MEA1608LC080T001
Part Number MEA1608LC080T001
Manufacturer TDK
Pin Count 10
Part Category Filter
Package Category Other
Footprint Name Other - MEA1608_2
Released Date Oct 20, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MEA1608LC080T001 Details

Manufacturer Part Number:
MEA1608LC080T001
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8504.50.80.00
Factory Lead Time:
12 Weeks
Manufacturer:
TDK Corporation
YTEOL:
7.39
Capacitance:
8 µF
Filter Type:
DATA LINE FILTER
Height:
0.5 mm
Length:
1.6 mm
Mounting Type:
SURFACE MOUNT
Number of Functions:
4
Number of Terminals:
10
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Packing Method:
TR, 7 INCH
Rated Current:
0.1 A
Rated Voltage:
6.3 V
Width:
0.8 mm

MEA1608LC080T001 Frequently Asked Questions (FAQs)

The recommended land pattern for the MEA1608LC080T001 can be found in the TDK Corporation's application note or in the IPC-7351 standard. It is essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal and mechanical stress.
To prevent damage, handle the MEA1608LC080T001 by the edges, avoid touching the component's surface, and use anti-static wrist straps or mats to prevent electrostatic discharge. Also, ensure that the assembly area is clean and free from debris.
The maximum allowable voltage derating for the MEA1608LC080T001 is typically 80% of the rated voltage. However, it is recommended to consult with TDK Corporation's application engineers or refer to the device's reliability report for specific derating guidelines.
The MEA1608LC080T001 is rated for operation up to 125°C. However, it is essential to consider the device's power dissipation, thermal resistance, and the PCB's thermal design to ensure reliable operation in high-temperature environments.
To determine the optimal current rating, consider the device's power dissipation, thermal resistance, and the maximum allowable temperature rise. Consult with TDK Corporation's application engineers or refer to the device's datasheet and application notes for guidance.
