The recommended land pattern for the MEA1608LC100T001 can be found in the TDK Corporation's documentation, typically in the 'Recommended Land Pattern' section of the datasheet or in a separate application note.
Thermal management is crucial for the MEA1608LC100T001. Ensure good thermal conductivity between the component and the PCB by using thermal vias, thermal pads, and a sufficient copper area. Follow the recommended thermal management guidelines provided by TDK Corporation or consult with a thermal management expert.
The maximum operating temperature range for the MEA1608LC100T001 is typically specified in the datasheet, usually between -40°C to +125°C. However, it's essential to check the specific datasheet for the exact temperature range.
To ensure the reliability of the MEA1608LC100T001 in high-reliability applications, follow the recommended design guidelines, use a robust PCB design, and ensure proper thermal management. Additionally, consider using components with a high reliability rating, such as those with a high MTBF (Mean Time Between Failures) or a low FIT (Failure In Time) rate.
The MEA1608LC100T001 is a common mode choke designed for high-frequency noise filtering and electromagnetic interference (EMI) suppression. Typical applications include automotive, industrial, and consumer electronics, such as power supplies, motor control units, and audio/video systems.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MEA1608LC100T001 Overview

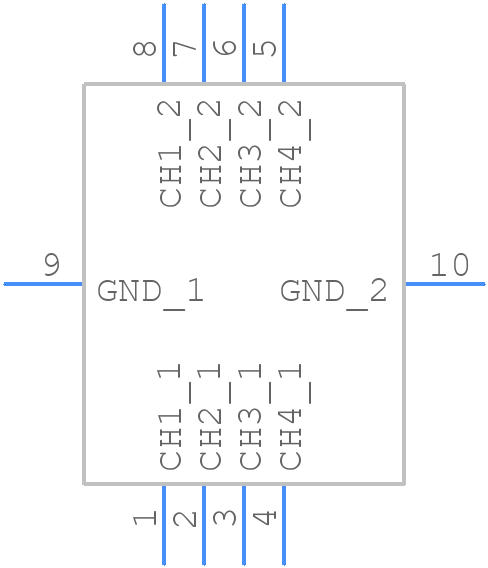

Use the download button to access the MEA1608LC100T001 schematic symbol, PCB footprint, and 3D model.
