The recommended land pattern for MEA1608LC220T001 can be found in the TDK Corporation's recommended footprint document or by contacting their technical support. It's essential to follow the recommended land pattern to ensure proper soldering and to prevent thermal and mechanical stress on the component.
To prevent damage, handle the MEA1608LC220T001 by the edges, avoid touching the component's surface, and use anti-static wrist straps or mats to prevent electrostatic discharge (ESD). Also, follow the recommended storage and handling procedures outlined in the datasheet or by TDK Corporation's technical support.
The maximum allowable voltage derating for MEA1608LC220T001 depends on the specific application and operating conditions. As a general rule, it's recommended to derate the voltage by 10-20% to ensure reliable operation and to prevent premature failure. Consult with TDK Corporation's technical support or a qualified engineer for specific guidance.
The MEA1608LC220T001 is rated for operation up to 125°C, but its performance and reliability may degrade at higher temperatures. If your application requires operation above 125°C, consult with TDK Corporation's technical support to determine the suitability of the component and to discuss potential derating or alternative solutions.
To troubleshoot issues with the MEA1608LC220T001, start by reviewing the datasheet and application notes, then check the component's soldering and assembly, and verify that the operating conditions are within the specified range. If the issue persists, contact TDK Corporation's technical support for further assistance and guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MEA1608LC220T001 Overview

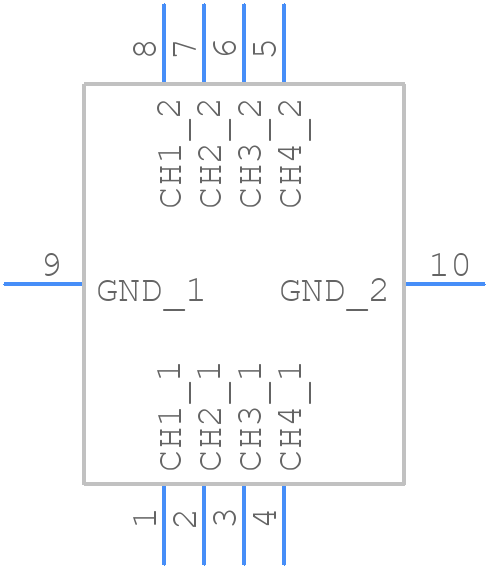

Use the download button to access the MEA1608LC220T001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MEA16,
or try a keyword search, such as Data Line Filters
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
